Vectorial hatching in ArchiCAD 26

Gisele
Advocate

vectorial hatching 26.jpg

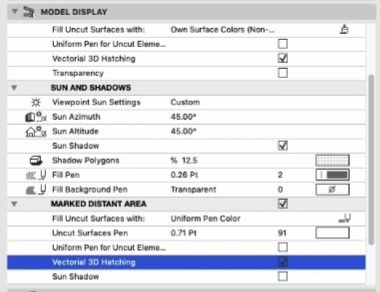

ArchiCAD 24 had a vectorial hatching option in elevation settings. What is the equivalent in 26?

AC 26 - 5002 USA FULL
Win11 Pro 22H2 - 13th Gen Intel(R) Core(TM) i9-13900KF 3.00 GHz - 64 GB - 64-bit operating system, x64-based processor
1 ACCEPTED SOLUTION

Accepted Solutions
Solution
Barry Kelly
Moderator

'Marked Distance Area' has been renamed ' Fade Distant Elements', and 'Vectorial 3D Hatching' is now called 'Surface - Cover Fiill Foreground'.






Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

View solution in original post

2 REPLIES 2
Dave Seabury
Advocate

Gisele

try this  Elevation Selection Settings>Model Appearance>UNCT ELEMENTS>Uniform Pen-Color Fill, Non-Shaded



David



AC 19-24 Windows 10 64 bit, Dell Prercision 7820, Xeon Silver 2414R ( 12 Cores), 64 GB Ram, Quadro RTX 4000 8GB
Solution
Barry Kelly
Moderator

'Marked Distance Area' has been renamed ' Fade Distant Elements', and 'Vectorial 3D Hatching' is now called 'Surface - Cover Fiill Foreground'.






Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
