Zone area issue

maurotrotta
Booster

I have an issue while constructing the zone correctly. My project is a mix of Walls and Doors elements drawn in archicad, and 2D lines drawn in another software. I am doing a polyline around the space I need to measure and I check the "Zone Boundary". Then I choose the zone tool and as construction method I choose "inner edge" because I need the netto area and the inside walls and doors are done with Archicad. The result is it only fill the area of one room and exclude another. I could go and add anchor points to the zone but then I will have to remove the fill of the zone under the doors and I don´t know how to do that. Any helo would be appreciated.

3 REPLIES 3
Barry Kelly
Moderator

Images of the problem will help.

Inner edge will only flood up to a wall or zone boundary line.

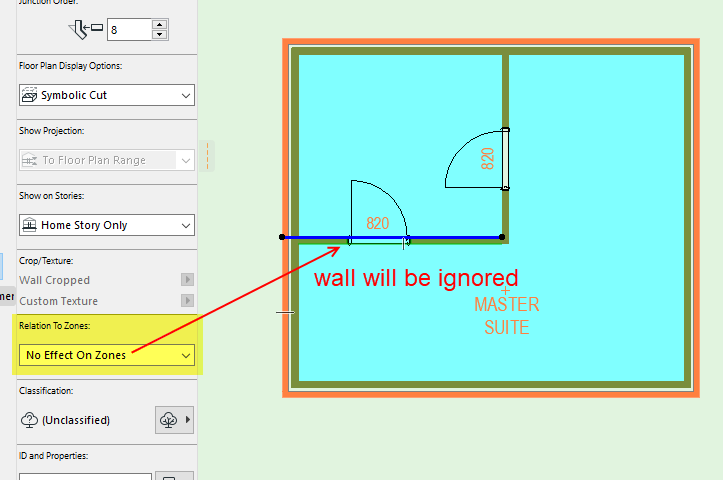

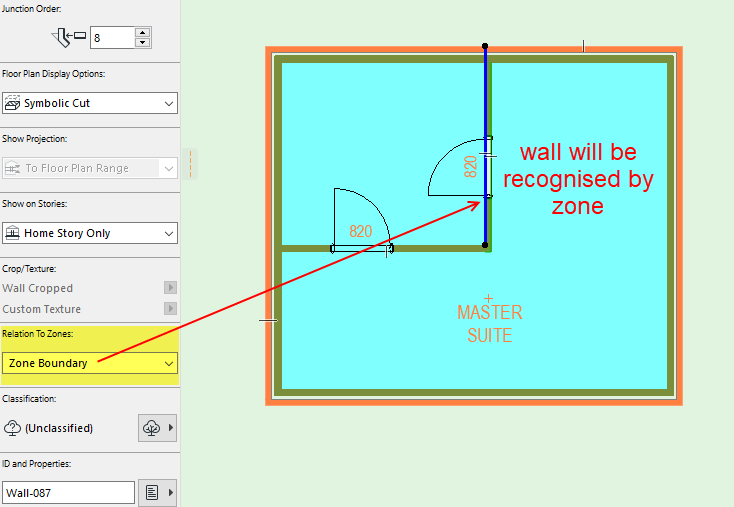

Just as you can set a line to become a zone boundary, you can set a wall so it is not a zone boundary and will be ignored.



Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

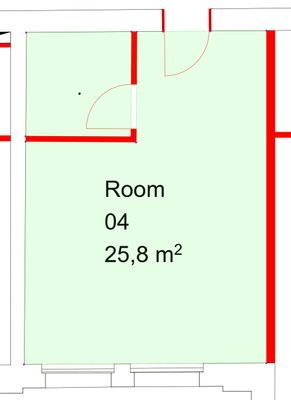

All walls are set as zone boundary. Here the screenshots with the desired measurement and one with the incorrect one.

zones_correct measure.jpg



zones_incorrect measure.jpg

Are you sure those internal walls are set correctly to ignore the zone or not?
