how can i show the dimension in very quick way

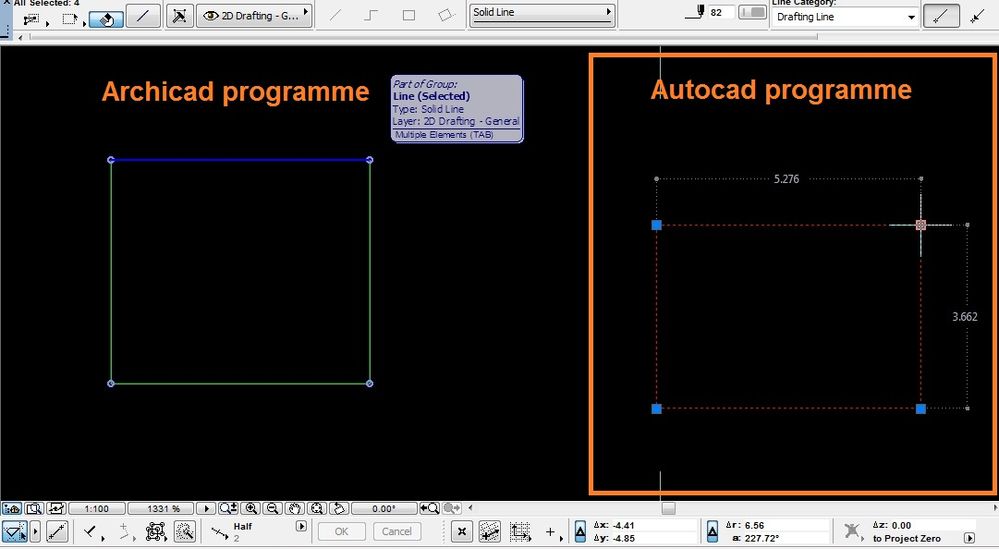

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2011-03-25
11:08 AM
- last edited on
2023-05-30
03:14 PM
by
Rubia Torres
- Labels:
-
Dimension Tools

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2011-03-25 12:50 PM
Architect, Consultant
MacBook Pro Retina, 15-inch Yosemite 2.8 GHz Intel Core i7 16 GB 1600 MHz DDR3
Mac OSX 10.11.1
AC5-18
Onuma System
"Implementing Successful Building Information Modeling"
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2011-03-29 08:45 AM
Red Canoe Architecture, P. A.
Mac OS 10.15.7 (Catalina) //// Mac OS 14.5 (Sonoma)
Processor: 3.6 GHz 8-Core Intel Core i9 //// Apple M2 Max
Memory: 48 GB 2667 MHz DDR4 //// 32 GB
Graphics: Radeon Pro 580X 8GB //// 12C CPU, 30C GPU
ArchiCAD 25 (5010 USA Full) //// ArchiCAD 27 (4030 USA Full)
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2011-03-29 09:09 AM

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2011-03-29 09:46 AM
But if it is a polygon (fill, slab, etc.) then you won't get the length or width.
Then you have to use the measure tool.
You can just continually measure - you don't have to start and stop for each element.
But you don't have a permanent on screen measurement.
If you want you can also just add a dimension.
Then as you stretch or move your elements the dimension will adjust.
Select the dimension and CTRL click to add more points.
You can put the dimensions in a layer that can be turned on or off when ever you need or don't need them to save deleting and re-doing the dimensions.
Barry.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2011-03-29 03:12 PM
Barry wrote:Incorrect, the element information palette can give you area and volume.
Element Information is fine if you want the length of lines.
But if it is a polygon (fill, slab, etc.) then you won't get the length or width.
Then you have to use the measure tool. Barry.

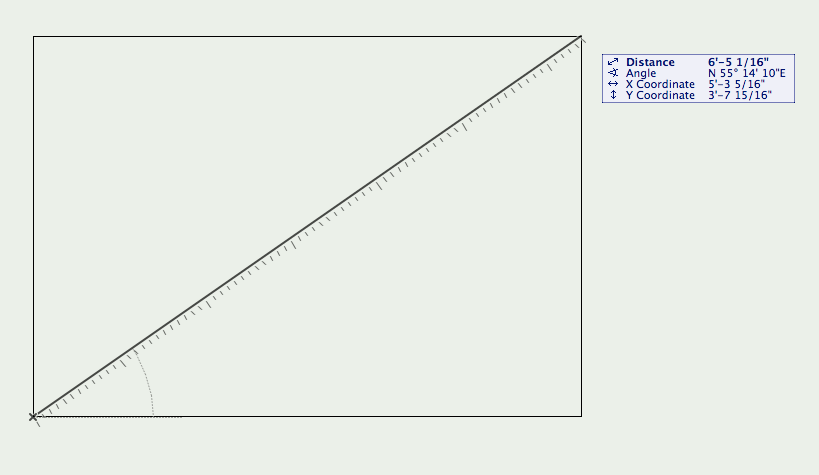

For linear dimensions you can place a local origin and then move your cursor to where you want to measure from and read off the distance in the coordinates box.
Depending on how often you want to check measurements of similar types of elements you can also create a schedule
and so on and so on....
Architect, Consultant
MacBook Pro Retina, 15-inch Yosemite 2.8 GHz Intel Core i7 16 GB 1600 MHz DDR3
Mac OSX 10.11.1
AC5-18
Onuma System
"Implementing Successful Building Information Modeling"

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2011-03-30 04:35 AM
Erika wrote:Yes but we were talking about measuring lengths?
Incorrect, the element information palette can give you area and volume.
The element info doesn't give any feedback on lengths or widths of polygons because they can obviously be any shape or size.
You either need to physically measure, move the user origin and use the co-ordinate box as you mention or physically dimension a polygon.
Barry.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
2011-03-31 04:07 AM
This also has the advantage of working for anything, not just the dims of a drawn element. It can even be done on the fly while drawing for relative offsets.
