Creating a live viewpoint for stories

[lahulme]

Is there a way to set up a live key in the paper space that shows the story settings i.e. so that there is always a clear and update viewpoint that show the stories used.

I know you can have the stories visible in section and then bring these through to the paper space, however what I am trying to do is create a live viewpoint that can be used on any drawing and bring it in a bit like a door/window schedule

Thanks in advance

[runxel]

Hi @lahulme and welcome to the Forum.

With "paper space" you mean layouts, I guess?

Honestly I don't fully understand your question – maybe you can show us a picture of what you are trying to do here?

[Lingwisyer]

As in a table of your storey names and heights?

[lahulme]

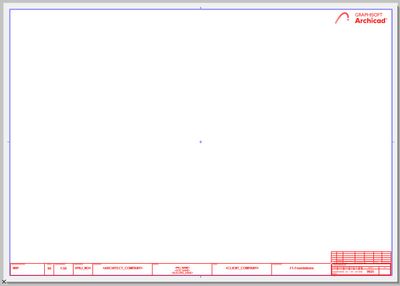

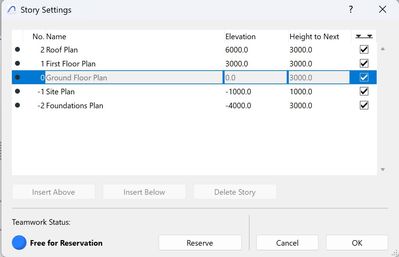

Essentially I want to add the stories table as below and yes add it to the layout sheet

 as a live viewport/table. I hope that makes more sense.

[runxel]

Ah well, interesting demand I've not seen before. There is nothing out of the box that I'm aware of.

The data is easy to get with the STORY_Info request (p. 501 of the reference manual).

I'm not sure if that one works when you place it directly on the layout tho. Might need a worksheet.

There is no native "make a table" command in GDL, but you can have a look into e.g. some labels, or the transmittal overview object. In there is a macro call, which builds a table from custom input. It's not easy to wrap your head around tho, I must say.

[Patrick M]

you can create a schedule with the criteria:
element type is slab
height to home story is 0

then the schedule fields would be
home story
elevation (above project 0)
...
where I'm falling short is the height to next column. I'm assuming you could do something with expressions to fill in that blank, but expressions are never my strong suit. If Jan catches wind of this comment, maybe he can fill in for my deficiency here?

[Patrick M]

Here's that in a quick tip vid...

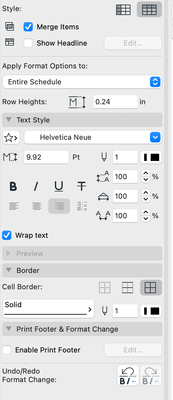

one thing I forgot to mention was, you may want to check the merge items box in the schedule style settings (screen shot and vid link attached, video may still be processing on youtube when posting this):
https://youtu.be/2mUbLEuOj8s

 

[AllanP]

the gdl code that runxel refers to does work in objects on the layout.

if you put the following code into the master script or 2D script of a new blank object, you will get the table(without the level marker checkbox)

! n = REQUEST ("Story_info", expr, nStories,

! index1, name1, elev1, height1 [,

! index2, name2, ...])

! STR (format_string, numeric_expression)

! format_string: "%[0 or more flags][field_width][.precision] conv_spec"

! flags: (for m, mm, cm, dm, e, df, di, sqm, sqcm, sqf, sqi, dd, gr, rad, **beep**, l, cucm, cumm, cuf, cui, cuy, gal):

DEFINE STYLE "myFontStyle" "Arial", 2.5, 1, 0
SET STYLE "myFontStyle"

DIM Storey_Table_Array[]
N_of_Fields_returned = REQUEST ("STORY_INFO", "", Number_OF_STORIES, Storey_Table_Array)
TextLineH = 0.010
textSpacing1 = 0.010
textSpacing2 = 0.050
textSpacing3 = 0.070
for loop_number = 1 to Number_OF_STORIES
	text2 0.00, 0.00, Storey_Table_Array[loop_number*4-3 ]      ! index
	text2 textSpacing1 , 0.00,Storey_Table_Array[loop_number*4-2]   ! name
	text2 textSpacing2, 0.00,STR ("%mm",Storey_Table_Array[loop_number*4-1])   ! elev
	text2 textSpacing3, 0.00,STR ("%mm",Storey_Table_Array[loop_number*4])   ! height
	hotspot2 0.000, 0.000
	hotspot2 0.090, 0.000
	add2 0,TextLineH
next loop_number
