GDL - object with a invisible box witch cuts away on other elements

Bawar Tanay
Enthusiast

Hi Everybody,



Quick question, hopefully someone knows the answer.



Is there a way to add an invisible box / block which cuts automatically through other elements

like, for example, a wall hole / wall niche does for door/windows in walls.



I want to make a display object which automatically cuts the surrounding wall. Without having the problem of choosing a material which has a high intersection priority.



My first idea was to have an extra block with a high intersection priority building material, I.E., SEO material.

Still not tested yet.



Maybe you know better ways.



Archicad 16 - 26
Laptop: Alienware M18 R1 | windows 11 pro | i9-13900HX | RTX 4070 8 GB | 32 GB RAM
PC office 1: windows 11 pro | I7-10700 | RTX 2060 6 GB | 32 GB RAM
PC office 2: windows 11 pro | i7-12700 | RTX A2000 6GB | 32 GB RAM
1 ACCEPTED SOLUTION

Accepted Solutions
Solution

Using the SEO is no problem at all,



at least, you don't need to use more than 1 object for the cut.

Downside of opening tool. If moving a case, then you need a second command for moving the opening.

If you change dimension, the opening needs to be adjusted, resulting in more time spending.



The way of @runxel is normally the way to do, but again takes more steps, resulting in more time lost.



Exhibitions are assignments with a deadline within 16 hours or less

so every second is important.



For me, I solved it using the method of @SenecaDesignLLC



so if you have a case, it doesn't matter whether it is a simple cube/rectangular or a complex prism.

 For other people, the way I used it for a simple cube:



adding a parameter :

Setting_space = 0.1



if GLOB_SEO_TOOL_MODE = 1 then
    add -Setting_space/2, -Setting_space/2, -Setting_space/2
    block a+Setting_space, b+Setting_space, zzyzx+Setting_space
else
    block a, b, zzyzx
endif

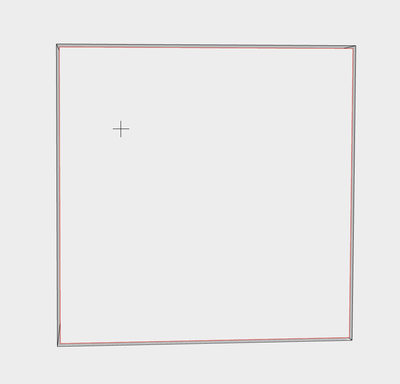

this looks like this :

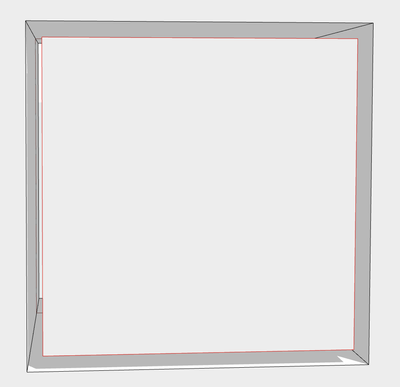

When changing setting space to 50 mm in the custom settings. The case will look like this.






Love this method once placed using de Solid Element Operator.

And that's it. You can change the case without having to change any other objects.









Archicad 16 - 26
Laptop: Alienware M18 R1 | windows 11 pro | i9-13900HX | RTX 4070 8 GB | 32 GB RAM
PC office 1: windows 11 pro | I7-10700 | RTX 2060 6 GB | 32 GB RAM
PC office 2: windows 11 pro | i7-12700 | RTX A2000 6GB | 32 GB RAM

View solution in original post

8 REPLIES 8

Gdl objects do not work with intersection priority. A window or door object doesn't have to be a window or door either.

I have several objects with invisible parts but it requires an invisible material to be created.

You can define in gdl what parts of the object participate in SEO as well.

i just searched on the GDL reference guide i found this:

GLOB_SEO_TOOL_MODE = 1 generating as an operator for Solid Element Operations
The generated 3D model is used as a parameter for solid (CSG) operations. This can be useful, when the object's space demand is larger than
the object itself. E.g. when you subtract a stair from a slab, you'd expect that the stair cuts a hole for the walking people, too. To achieve this,
in this context the stair should generate a model containing that walking space.



but it doesnt really explains how to define a part of a object to participate in seo.



the invisible material could be just air no?
