How to align fills according to graphic orientation

mrsneuna
Booster

My site is a little slanted so I adjusted it, because it's quite difficult to make anything slanted so I changed the graphic orientation to straight, so I wanted the fills on the slab to remain straight when I changed the orientation. Can it?

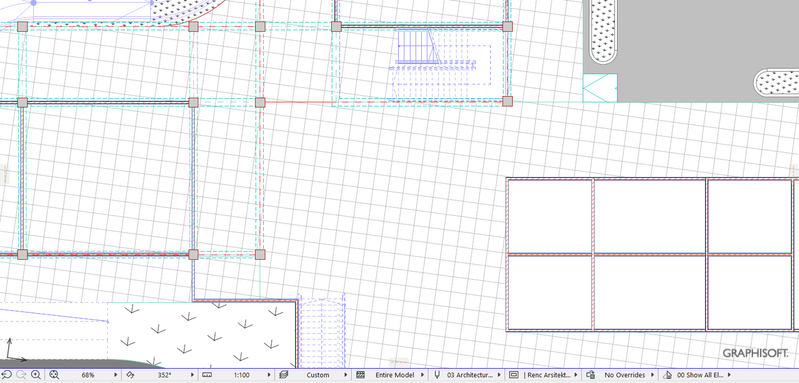

pic above is 352 degrees




pic above is 0 degrees



Operating system used: Windows 10

3 REPLIES 3

Hi @mrsneuna,

You can set slab fill to follow the graphical rotation by adjusting the cover fill orientation to be linked to Fill origin.



Screenshot 2024-05-18 170716.pngScreenshot 2024-05-18 170702.png



** Additional tip regarding (Construction Grid),

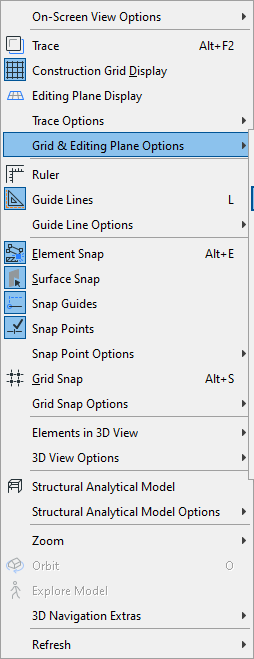

If you like the grid to fit your graphical orientation, you can set it as attached below:



Screenshot 2024-05-18 185319.png

Screenshot 2024-05-18 185331.png

Screenshot 2024-05-18 185218.png

Screenshot 2024-05-18 185248.png

Screenshot 2024-05-18 185042.png

AC 27 INT 5003/WIN 11
AMD Ryzen 7 5800H with Radeon Graphics 3.20 GHz 16.0 GB

Can the fills be straightened automatically? I have made a lot of fills

I'm sorry, I think it can't be solved for all fills by one click as every fill has its own rotation.

However, you can create a wish for that, it may be applied someday.
