Window on floor plan

Strawbale23
Expert

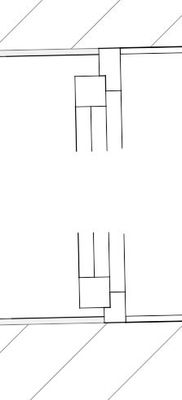

Since AC27, windows on my floor plans are now showing differenlty than from before. They have a gap in their 2D representation, as shown in his image. Can anyone help with what might be causig this please?

thanks



AC26
https://www.zendsign.fr/
4 REPLIES 4
Barry Kelly
Moderator

Is it the same for any window and no matter what width you make it?

Could it be a window marker with a screen coloured background fill?



Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Hi Barry, thank you once again for you help. I went through your suggestions.

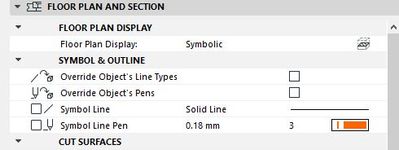

Finaly, it turned out that I had selected "override objects line types" without realising.



AC26
https://www.zendsign.fr/

So I assume then it was using a 'dashed' line.

The short lines look ok because they are too short to show a gap.

The longer lines show the gap in the dashed lines.



Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Well, this is what is strange to me. The override line was a solid line. And when I changed the line it didn't change the appearance of the window plan view. I played around with it but it didn't seem to do anything to change the appearance, except dust turning it on and off, which removed the gaps. This is a setting I never touch normally and have no idea how it works. I'll play around with it some more. Thank you very much for your help.
