Archicad 26 - Multi Plane Roof Not Showing Object Edges

MikeRaats_FOX
Participant

I am in the process of setting up a new template for my work, have been using an old one from 2009, I am struggling to get the Multi Plane roof to show up on my floor plans.



I am using a custom Complex profile for the roof, its set to the existing renovation filter, and on the ceiling plan with displays set to home and 1 up and 1 down.



If I break it up into individual single components it shows up, I am at a total loss for why I cant see it on plan. Any help would be greatly appreciated.Split UpSplit UpScreenshot 2023-07-17 at 12.28.57 pm 1.png

AC 26 - 5003 INT-FULL (Apple Silicone)
Maco OS Ventura 13.4 | MacBook Pro 2022 | 16Gb
1 REPLY 1

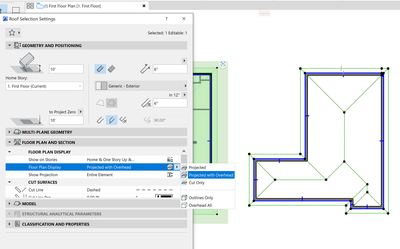

Seems to work as expected for me in 26 USA 5002 Win64 FULL







ArchiCAD 25 7000 USA - Windows 10 Pro 64x - Dell 7720 64 GB 2400MHz ECC - Xeon E3 1535M v6 4.20GHz - (2) 1TB M.2 PCIe Class 50 SSD's - 17.3" UHD IPS (3840x2160) - Nvidia Quadro P5000 16GB GDDR5 - Maxwell Studio/Render 5.2.1.49- Multilight 2 - Adobe Acrobat Pro - ArchiCAD 6 -25
