SOLVED!

Colorbond panel fence created with editing a preset railing in Australia

mthd
Ace

Hi there, has anyone in Australia successfully created colorbond fencing with an edit of a preset railing ? I don’t need a high level of detail except to show the metal sheet profile in the panel settings. How do I get a colorbond panel to show up in my railing panel setting ? A standard Bunnings fence kit with inserts is what I am trying to model up.



I do have “CI tools Coverings” installed so I might just draw a standard railing with a few edits and just clad the rail or even draw a wall and just add the colorbond profile to it ? If you have a better method please reply.



Please see the PDF below for a picture of what I am trying to model.



Thank you.



https://www.steeline.com.au/wp-content/uploads/2019/04/Panel-Fencing-Installation-Guide-Stee495_Prod...

AC8.1 - AC28 ARM AUS + CI Tools
Apple Mac Studio M1 Max Chip 10C CPU
24C GPU 7.8TF 32GB RAM OS Sequoia
51 REPLIES 51

Without scripting a custom piece, it all just comes down to how small a single segment of your sheet pattern is and what gradient your fence is at.

AC22-23 AUS 7000Help Those Help You - Add a Signature
Self-taught, bend it till it breaksCreating a Thread
Win11 | i9 10850K | 64GB | RX6600 Win10 | R5 2600 | 16GB | GTX1660

It's not that difficult though is it - really?



Screenshot 2022-12-09 at 12.56.41.png

Archicad 27 UKI | OS X 12.7.1 Monterey

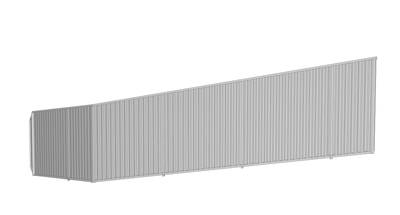

Great job Jim to get the top of the fence to slope like that.



AC8.1 - AC28 ARM AUS + CI Tools
Apple Mac Studio M1 Max Chip 10C CPU
24C GPU 7.8TF 32GB RAM OS Sequoia
mthd
Ace

BTW I used a different method in this instance and made my CI tools do the work for me with the coverings tool. I created a thin invisible wall and attached the cladding to it and made a top and bottom rail appear with the coverings settings. Then I used the column tool to make the posts and the rest is history.



Thank you very much for all the help and suggestions.





AC8.1 - AC28 ARM AUS + CI Tools
Apple Mac Studio M1 Max Chip 10C CPU
24C GPU 7.8TF 32GB RAM OS Sequoia

Hi Jim



Would you be able to share the setting used for this?



I have tried the custom balusters but keep getting those gaps in between.

AC26 AUS | AMD Ryzen 7 3700X 8-Core Processor, NVIDIA GeForce RTX 2080 SUPER

Here you go, Railings can be fiddly, but fun when you get the hang of it 😀



https://www.icloud.com/iclouddrive/029DAQSTaqIUJ9zvCXzh_wVqw#Colorbond





Archicad 27 UKI | OS X 12.7.1 Monterey

Hey James



I 100% agree with you. It is a powerful tool hence I am trying to utilise it.



The link you have provided is saved as Archicad 27. Are you able to provide a version in Archicad 26?



AC26 AUS | AMD Ryzen 7 3700X 8-Core Processor, NVIDIA GeForce RTX 2080 SUPER

Try this.



https://www.icloud.com/iclouddrive/058nKO6s3Sl_lBqZ9Fr8C4i-A#Colorbond_AC26

Archicad 27 UKI | OS X 12.7.1 Monterey

Amazing, Thanks a lot for your help with this one. 👍

AC26 AUS | AMD Ryzen 7 3700X 8-Core Processor, NVIDIA GeForce RTX 2080 SUPER
mthd
Ace

Hi all, I  have successfully transitioned from using the CI wall coverings tool with an invisible wall, to a railing with a custom colorbond sheet fence profile.



I need to taper the top of my fence down from 1.8m high to about 1.0m high. Similar to the picture that @Jim Allen, has provided above. How do I achieve this with the railings UI and how do I create a tapered top sheet profile ? (Without GDL of course)



Any help would be much appreciated.



Edit: I will try and use a tapered beam with a complex profile for the fence sheets to see if that will work or not ?
