Complex profile lineweight problem

Anatatj
Contributor

Hello,

I have problem with lineweight of complex profiles on floor plans.

The lineweights look correct in the profile manager and in section but not in floor plan. I tried to set draw order but its not helping.

True lineweight is on. Any advice? I attached screenshots.




Operating system used: Windows

1 ACCEPTED SOLUTION

Accepted Solutions
Solution
Miha Nahtigal
Advocate

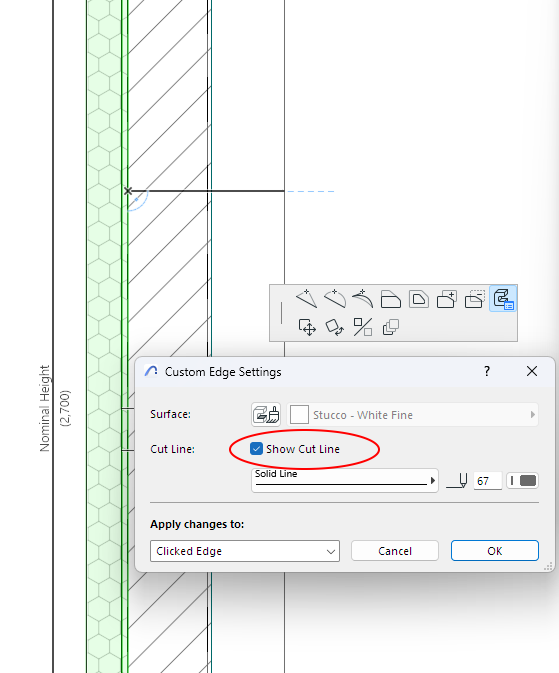

In profile editor select your insulation fill. From there you can click on the fill's line facing brick. A popup appears, click the "Custom Edge Settings" button and turn the line off by unchecking "Show Cut Line".

That should do the trick.


BIMquants.comBETA - Quantities and Costs Estimation in Archicad - BETA testers needed.

View solution in original post

2 REPLIES 2
Solution
Miha Nahtigal
Advocate

In profile editor select your insulation fill. From there you can click on the fill's line facing brick. A popup appears, click the "Custom Edge Settings" button and turn the line off by unchecking "Show Cut Line".

That should do the trick.


BIMquants.comBETA - Quantities and Costs Estimation in Archicad - BETA testers needed.
Anatatj
Contributor



That worked, thank you!
