Curtain Wall - Horizontal Rotate Axis

Lingwisyer
Guru

Hi all,



Is there some way to rotate the reference line of planar curtain walls? X/Y to Y/X

I am sure I have done if before you align with skewed buildings...



Ling.

AC22-28 AUS 3110Help Those Help You - Add a Signature
Self-taught, bend it till it breaksCreating a Thread
Win11 | i9 10850K | 64GB | RX6600 Win11 | R5 2600 | 16GB | GTX1660
4 REPLIES 4
mikas
Expert

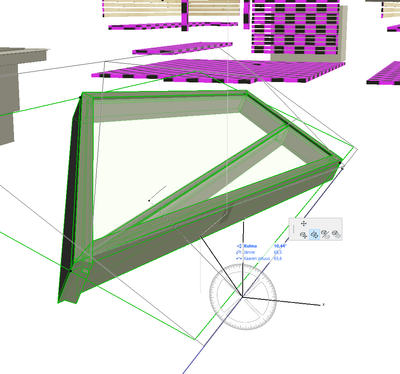

You can rotate planar CW to an angle up from xy plane in 3D view, please see attached (if that was what you wanted to achieve).


AC27, Rhino7/8+Grasshopper, TwinMotionMac Pro 6,1 E5-1650v2-3,5GHz/128GB/eGPU:6800XT/11.6.5 • HP Z4/Xeon W-2195/256GB/RTX4080FE 16GB/W11ProWS
Lingwisyer
Guru

I am wanting a rotation around the z-axis, x/y to y/x. I ended up just rotating the entire curtain "wall" and redefining the boundaries...

AC22-28 AUS 3110Help Those Help You - Add a Signature
Self-taught, bend it till it breaksCreating a Thread
Win11 | i9 10850K | 64GB | RX6600 Win11 | R5 2600 | 16GB | GTX1660

Is it as simple as manually swapping the scheme column and row sizes with each other?

That works for a simple grid.



Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

There are multiple instances using the same pattern, so it is easier to manage if they are consistent.
