Curved Shapes of Curtain Wall

Kikoria
Enthusiast

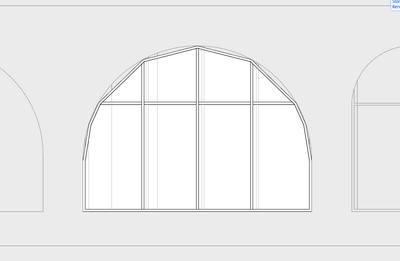

Hello there. I was wondering can I model curtain wall with curvy frame on top?




Kind regards,
Tamaz Kikoria
Architect
Technical Examination and Design Department
GEORGIAN WATER & POWER
1 ACCEPTED SOLUTION
2 REPLIES 2
Solution
Barry Kelly
Moderator

No, there is no such thing as a curved frame member in a curtain wall.

You have to make many shorter frames to give the curved affect.



Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Lingwisyer
Guru

I ended up doing a curved frame with a shell, then SEOing the curtain wall to that one time. Though there were multiple SEOs given it was curved in plan too...

AC22-23 AUS 7000Help Those Help You - Add a Signature
Self-taught, bend it till it breaksCreating a Thread
Win10 | R5 2600 | 16GB | GTX1660
