Dimensioning User Interface Greyed Out
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2024-08-01
06:42 PM
- last edited on
‎2024-08-16
12:39 AM
by
Laszlo Nagy

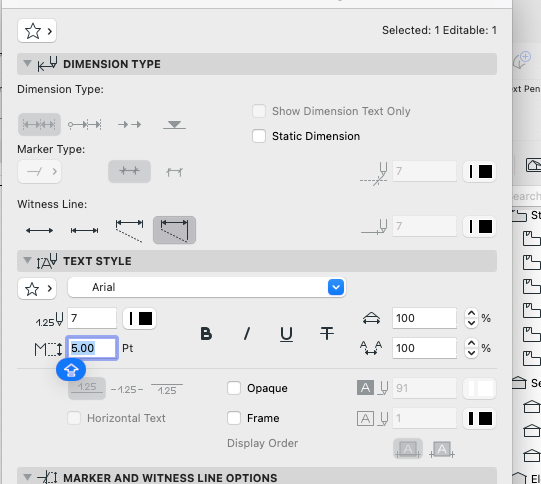

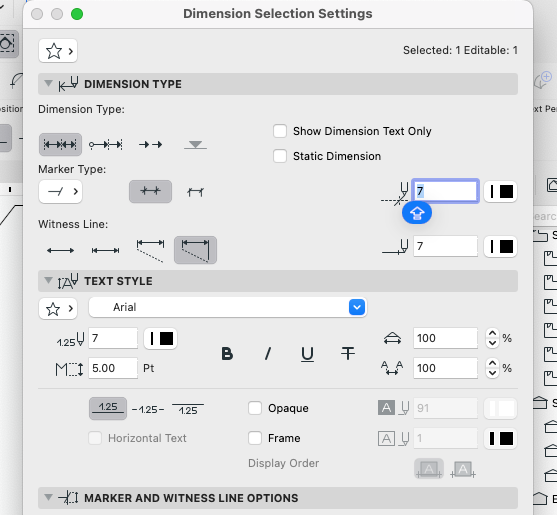

something i noticed when attempting to move a dimension line and not sure i understand why one is greyed out and unable to move the dimension line.
Operating system used: Mac Intel-based Sonoma 14.5
M3 Max 36GB MacBook Pro
Sequoia 15.1.1
Solved! Go to Solution.
- Labels:
-
Input Aids
Accepted Solutions
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2024-08-05 06:56 PM
Hi @Zdenko,
only one thing you should be aware of is when you select a dimension line you have to see the Mercedes arrow then select it (like in the first long dimension line).
But when the dimension line is short (as in the second case) you have to zoom in until you get that Mercedes arrow appears then select it.
AMD Ryzen 7 5800H with Radeon Graphics 3.20 GHz 16.0 GB

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2024-08-01 10:19 PM
One time you clicked on the main dimension line, the other time you clicked on a dimension node.
You may ask "why" and fair enough, but this is done so nodes can e.g. have different witness line styles.
POSIWID – The Purpose Of a System Is What It Does /// «Furthermore, I consider that Carth... yearly releases must be destroyed»
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2024-08-02 12:04 AM
will send video monday
M3 Max 36GB MacBook Pro
Sequoia 15.1.1

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2024-08-02 02:49 AM
Do not click on the dimension node or the exact centre point between dimension nodes, because that does not select the dimension line.
Click on the line itself or drag a selection box around the node/s on the end of the dimension line/s (or actually anywhere across the dimension line/s) to select it/them.
Barry.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2024-08-05 05:31 PM
so this is what i was trying to convey concerning the inability to move the dimension line.
M3 Max 36GB MacBook Pro
Sequoia 15.1.1
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2024-08-05 06:56 PM
Hi @Zdenko,
only one thing you should be aware of is when you select a dimension line you have to see the Mercedes arrow then select it (like in the first long dimension line).
But when the dimension line is short (as in the second case) you have to zoom in until you get that Mercedes arrow appears then select it.
AMD Ryzen 7 5800H with Radeon Graphics 3.20 GHz 16.0 GB

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2024-08-06 03:24 AM
@Mahmoud Qenawi wrote:
Hi @Zdenko,
only one thing you should be aware of is when you select a dimension line you have to see the Mercedes arrow then select it (like in the first long dimension line).
But when the dimension line is short (as in the second case) you have to zoom in until you get that Mercedes arrow appears then select it.
Exactly, as I said in my post - "Do not click on the dimension node or the exact centre point between dimension nodes, because that does not select the dimension line."
Barry.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
