How do I change the face brickwork hatch pattern color from black to red ?

mthd
Ace

Hi, how do I change the face brickwork hatch pattern color from black to red ?



I am using a pre set element attribute from the list. Is this a vectorial fill that cannot be edited ?



I have edited the composite for the wall lines but there is no option in that dialogue to change the fill hatching pen color ?



Can anyone show me how to go about it ?

AC8.1 - AC27 ARM AUS + CI Tools
Apple Mac Studio M1 Max Chip 10C CPU
24C GPU 7.8TF 32GB RAM OS Ventura
2 ACCEPTED SOLUTIONS

Accepted Solutions
Solution
Barry Kelly
Moderator

You should have a Building Material set up for your brickwork.

You can change the fill pattern and colours in the Building Material settings.






I am assuming you mean the fill in plan/section.

If you mean an associated hatch you see in elevation then see AllanP's post below.



Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

View solution in original post

Solution
AllanP
Advocate

For the pen on the elevation, its built into the surface that is assigned to the building material.

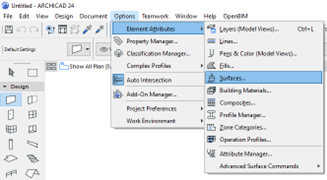

Attributes -> surfaces


select your brick surface..

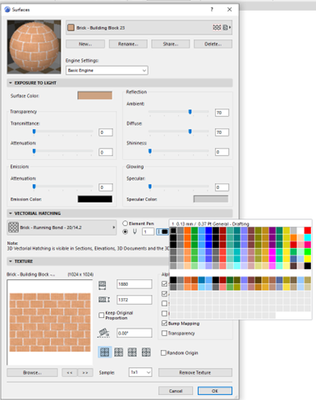

the pen to the right of the Vectorial Hatching fill pattern.
