I cannot see the contour line when I create mesh tool

didi
Participant

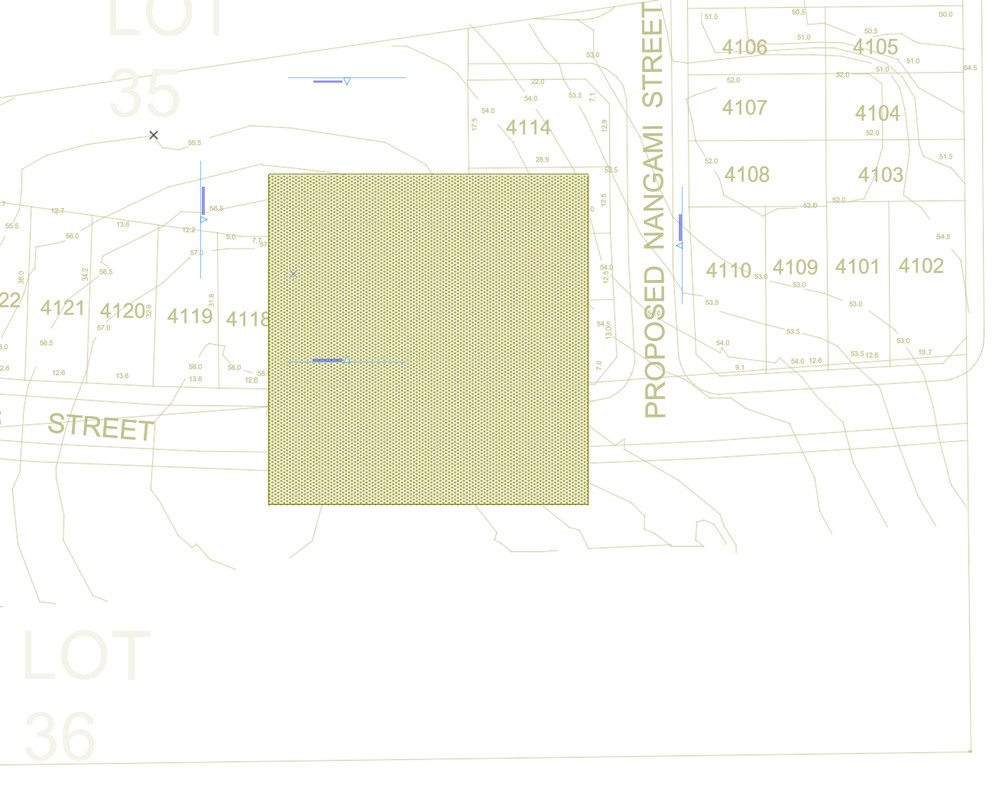

I cannot see the contour line when I create mesh tool , some pattern overlap the contour line



屏幕截图 2023-06-11 103835.png


屏幕截图 2023-06-11 103835.png
1 ACCEPTED SOLUTION

Accepted Solutions
Solution
Lingwisyer
Guru

*Cover Fill.



Mesh Default Settings => Floor Plan & Section => Cover Fills



If you are wanting to see things behind your Mesh, and still want to be using a Cover Fill, you could set your Background Pen to Transparent (0).

If you are wanting to see your Trace just for reference, you could display it on top.

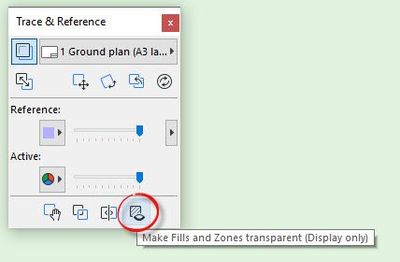

View => Trace Options => Trace on Top





Ling.

AC22-23 AUS 7000Help Those Help You - Add a Signature
Self-taught, bend it till it breaksCreating a Thread
Win11 | i9 10850K | 64GB | RX6600 Win10 | R5 2600 | 16GB | GTX1660

View solution in original post

4 REPLIES 4
sayon3d
Booster

Just CLEAR the HATCH....NO HATCH!!!

Solution
Lingwisyer
Guru

*Cover Fill.



Mesh Default Settings => Floor Plan & Section => Cover Fills



If you are wanting to see things behind your Mesh, and still want to be using a Cover Fill, you could set your Background Pen to Transparent (0).

If you are wanting to see your Trace just for reference, you could display it on top.



View => Trace Options => Trace on Top





Ling.

AC22-23 AUS 7000Help Those Help You - Add a Signature
Self-taught, bend it till it breaksCreating a Thread
Win11 | i9 10850K | 64GB | RX6600 Win10 | R5 2600 | 16GB | GTX1660
ferroms84
Participant


hi guy, much appreciated your answer and help. i fix it by your way
