Railing Tool-Custom Inner Post is not interrupting rails

rgarand
Booster

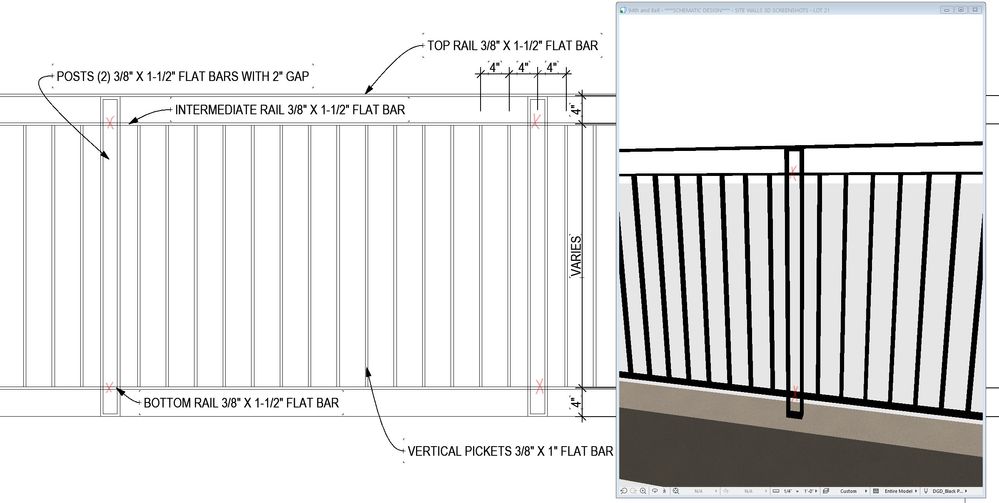

I have developed a custom inner post that has a 2" void in the center. The intermediate and bottom rails continue through the custom inner post. Does anyone know of a way to interrupt the rails? I looked at making a custom panel, but that is not available.

Robert J. Garand
Dale Gardon Design
ArchiCAD USA 26-Build 5002 USA FULL
Windows 10 Prof (64 bit)
Intel i9-10920X CPU 3.50 GHz (128 GB RAM)
NVIDIA Quadro RTX 5000
2 ACCEPTED SOLUTIONS
4 REPLIES 4
Solution

Hello @rgarand,



Did you try to use SEO ?

I use to ajust my railing modelisations by this way.





Christophe - FRANCE
Archicad Designer and Teacher
Archicad 15 to 27 FRA FULL

OS 11.6 Big Sur - MacBook Pro 2017 - 16Go RAM
"Quality is never an accident ; it's always the result of an intelligent effort" John Ruskin

An SEO within the Custom Post Object?

Robert J. Garand
Dale Gardon Design
ArchiCAD USA 26-Build 5002 USA FULL
Windows 10 Prof (64 bit)
Intel i9-10920X CPU 3.50 GHz (128 GB RAM)
NVIDIA Quadro RTX 5000
Solution

Yes.

Just go into edit mode for the railing and SEO the elements you want.

You may need to use subtract upwards/downwards seeing as your post has a void in the middle.



Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Ahhh excellent...and when you pick one Inner Post they are all selected. This worked great, thank you. Screenshot 2023-03-29 090400.jpg
