Solid Element Operation not working

Anonymous
Not applicable
i have a mesh with multiple slabs already operating on it (modeling roads and sidewalks) on a master plan. sometimes the SOE does not work on a slab, i am doing intersect and then subtract with upward extrusion. it has worked many other times and i'm following the same process but some slabs just won't work.

i have checked the material priorities, the slab is thick enough, i have cut them into smaller pieces, deleted the slab and redrew it, restarted, cleared old data,

still not working

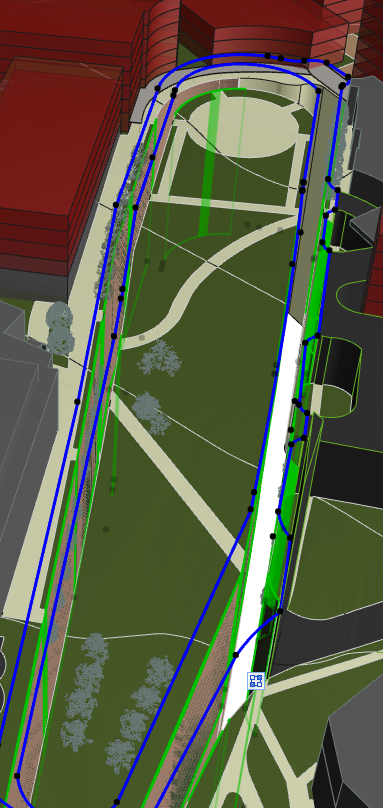

when i do the intersection function, my slab subtracts from the mesh and i just have a big hole (image), you can see the blue outline of the slab and the hole in the mesh it is making (instead of intersecting)

Screen Shot 2018-01-16 at 9.05.52 AM.png
1 REPLY 1
Barry Kelly
Moderator
Image did not attach.
