ok.. another software how to question... standard storefront system.. door with glass sidelites.. we know how to put in a storefront.. but we cant figure out the following..

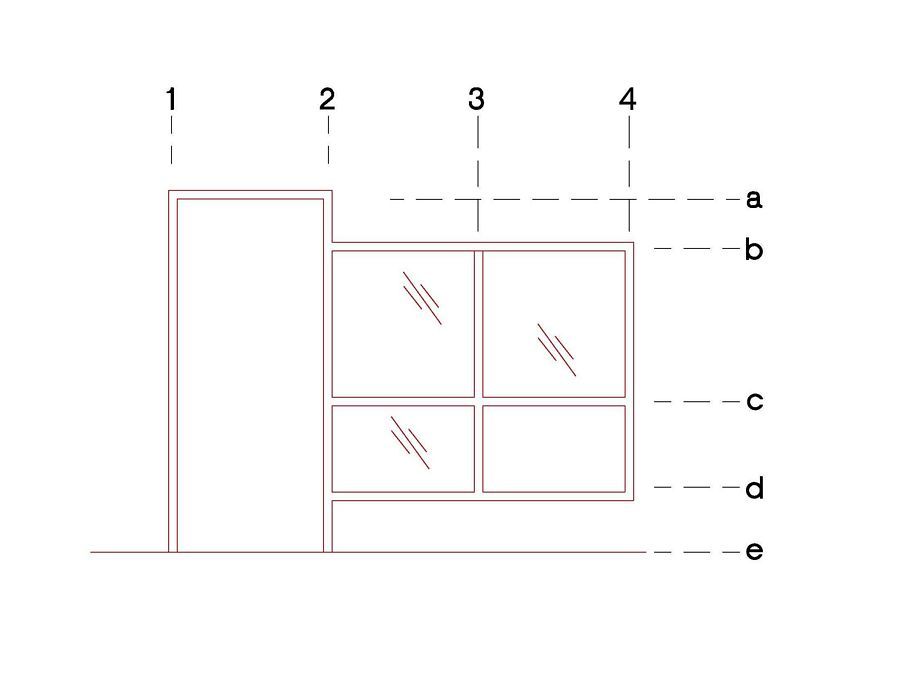

1- how to have different heights of the sidelites..as shown on attached
2- how to add mullions in the glass
3- remove/add sills
4- center frame on a wall.. it keeps pushing toward front or rear of wall

i appreciate the help
4 REPLIES 4
Erika Epstein
Booster
Please add your AC version and OS to your profile.
Which version of AC you are using can make a difference to the answer.
Erika
Architect, Consultant
MacBook Pro Retina, 15-inch Yosemite 2.8 GHz Intel Core i7 16 GB 1600 MHz DDR3
Mac OSX 10.11.1
AC5-18
Onuma System

"Implementing Successful Building Information Modeling"
Anonymous
Not applicable
that would help wouldnt it...

ac 13.. win xp

thanks
Erika Epstein
Booster
Cadmaster,

Click on the profile button above and add your AC and OS info there so it will always show up. First name would be friendly too

re your questions. There are several storefront library parts, so perhaps you could post a screenshot of which one you are using and what your current Reveal & closure settings are.

1. Model as you would build it applies here. The door and window would be 2 separate assemblies and put together on site. There are ganging options for doors and storefronts.
2. Depends on which storefront....
3. Ditto, but what are you trying to achieve with the sill?
4. IF for example you have chosen Custom Closure you can then set how far back the storefront sits, sim. to any door or window.

HTH
Erika
Architect, Consultant
MacBook Pro Retina, 15-inch Yosemite 2.8 GHz Intel Core i7 16 GB 1600 MHz DDR3
Mac OSX 10.11.1
AC5-18
Onuma System

"Implementing Successful Building Information Modeling"
Barry Kelly
Moderator
You could use the curtain wall tool to create this.
Or contact your reseller and try to get the Modular Joinery object (free if you can get it).
Or buy a special library object - something like Door & Window Builder might do this.
Or just create a one-off object from slabs in plan and save it as a window (note this won't be adjustable).
Barry.
One of the forum moderators.
