Variable Thickness of Insulation Layer

sd123
Participant

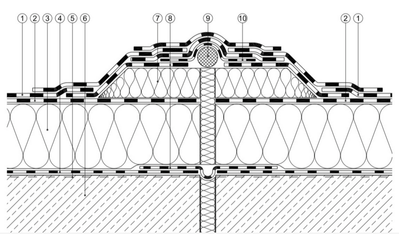

Is it possible to adjust the wavy insulation pattern as shown in the image below? I have a feeling that what I'm asking for might be something which you would need a plugin for (in case of the image it was a plugin for Revit called Revit Insulator) but I'm hoping for someone to maybe have a way to work around it only with Archicad tools.



I'm a newbie to the software so really far from possessing all the bits and bolts to solve this on my own.



Thanks in advance!




7 REPLIES 7

Hello @sd123,



It seems to be an awesome graphical effect but I have never seen this kind of wavy insulation before in real life (in France).

We are able to get a composite wall with a variable thickness of masonry with Archicad because it is very useful in old buildings.
Do you have an implementation example that justifies this type of representation ?



Capture d’écran 2024-02-18 à 19.52.39.png



Capture d’écran 2024-02-18 à 19.52.51.png

Christophe - FRANCE
Archicad Designer and Teacher
Archicad 15 to 27 FRA FULL

OS 13 Ventura - MacBook Pro M2 max- 32Go RAM
"Quality is never an accident ; it's always the result of an intelligent effort" John Ruskin
Barry Kelly
Moderator

We can set the fill orientation of a building material as 'fit to skin'.

This will allow it to match the skin width when it is used in any composite.

The thing is composites always have parallel skins, we can't have a wall with wavy skins as you have shown.






Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

He can model a wall like that using Complex Profiles though.





.Kamelite

Windows 10, Archicad 27

@Kamelite wrote:

He can model a wall like that using Complex Profiles though.


Not in plan, which is what I assumed was wanted.

In section, yes, you can have a wavy skin, but the fill will no longer fit either.



Barry

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Thanks Christophe and others

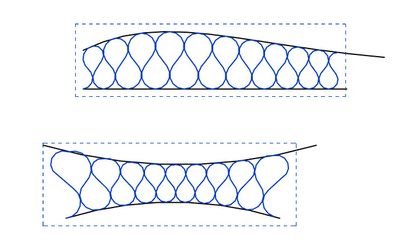

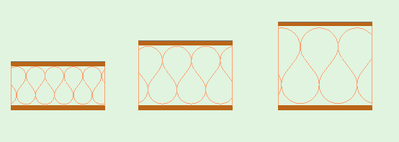

I was specifically thinking about the application in drafting details as shown below. I was assuming this was made in Archicad since I got told the software's drafting capabilities reach further than those of Revit but maybe it's just drawn manually.








Being able to apply this 'effect' in 3D would be a very welcome plus.



Stijn

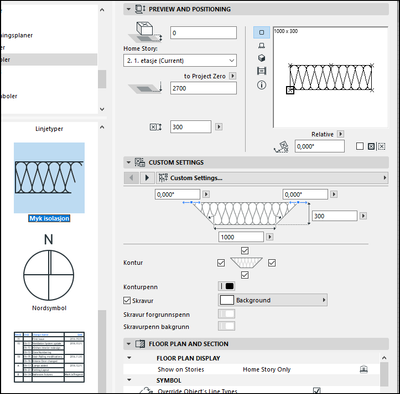

You do not need to draw them, that partikular shape is a part of the  objectlibrary, at least in my countrys version:




But it does not follow walls like the ones in the initial image.



.Kamelite

Windows 10, Archicad 27

If that is a plan view, you could create that with a complex profile column.



Barry.
