stair finish

Guillermo1
Booster

how can i hide the finish of the stair ( raiser, tread) in a load bearing element 3D View?

1 ACCEPTED SOLUTION

Accepted Solutions
Solution
Barry Kelly
Moderator

Unfortunately the stair finishes do not work with Partial Structure Display.

You can turn them off in the stair, but that will turn them off everywhere you see that stair.



I was going to suggest duplicating the stair in different layers that you cn turn on/off for your views.

Turn the treads and risers off in the structural view.

But that actually affects the size and position of the structural part of the stair, it doesn't just hide the treads and risers.



I just tried Renovation filters - set the structure to existing and the treads and risers to new, but that didn't seem to work either.

Still can't hide just the treads and risers.



And Graphic Overrides don't seem to be able to isolate just the treads and risers - I was thinking of making them transparent.

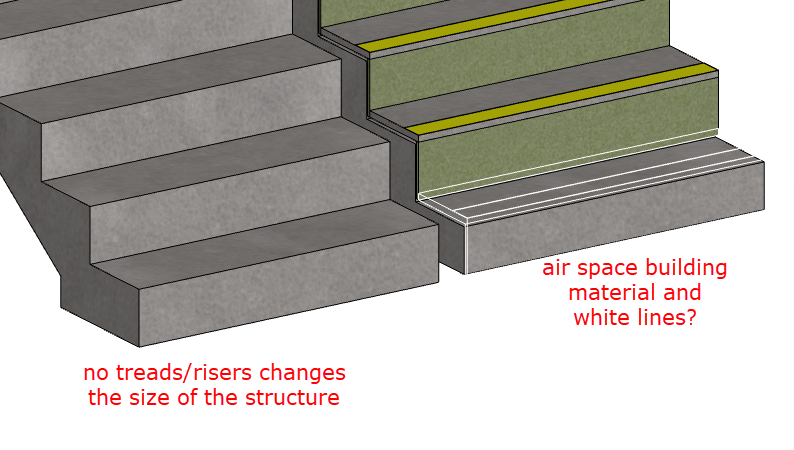

The best I could come up with is to duplicate the stair and set one with air space (transparent) building materials with with 3D outlines.








Barry.



One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

View solution in original post

2 REPLIES 2
Solution
Barry Kelly
Moderator

Unfortunately the stair finishes do not work with Partial Structure Display.

You can turn them off in the stair, but that will turn them off everywhere you see that stair.



I was going to suggest duplicating the stair in different layers that you cn turn on/off for your views.

Turn the treads and risers off in the structural view.

But that actually affects the size and position of the structural part of the stair, it doesn't just hide the treads and risers.



I just tried Renovation filters - set the structure to existing and the treads and risers to new, but that didn't seem to work either.

Still can't hide just the treads and risers.



And Graphic Overrides don't seem to be able to isolate just the treads and risers - I was thinking of making them transparent.



The best I could come up with is to duplicate the stair and set one with air space (transparent) building materials with with 3D outlines.








Barry.



One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Thanks Barry, missing core and  finishing functions in the stair structure
