Vertical vs horizontal section in Schedules

Sandramuller
Contributor

I had to add the vertical and horizontal section in my window schedule but they display  differently.



Helpline was just explaining one comes from the plan the other one from 3d view.



Anyone who resolved that?




1 ACCEPTED SOLUTION

Accepted Solutions
Solution

I have a Graphic Override, specifically for the schedule views that uses the (I believe default) rule for 'All Fill Backgrounds - Transparent.



Here are the settings for it ...




Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

View solution in original post

3 REPLIES 3
Barry Kelly
Moderator

I use a Graphic Override to make fills transparent.



Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

What settings  are you using?

I can't seem to make it work

Solution

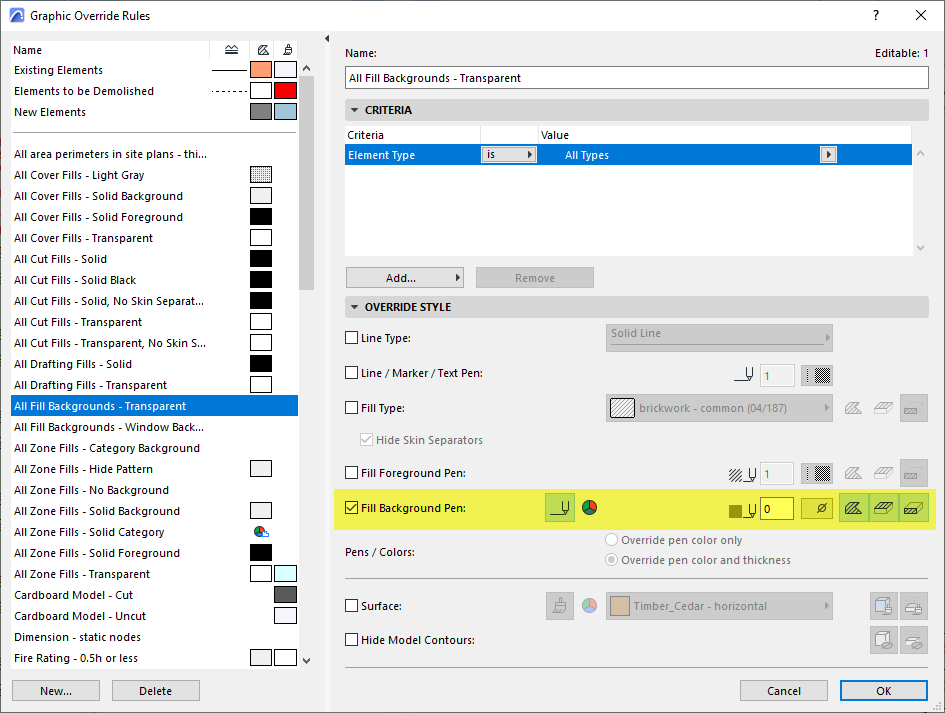

I have a Graphic Override, specifically for the schedule views that uses the (I believe default) rule for 'All Fill Backgrounds - Transparent.
