Wall with bottom offset > 3'-7 1/4" not appearing in schedule or find & select???

I'm trying to schedule the tile in an ensuite bathroom, but I have a wall that does not appear in the schedule with the following scheme settings:






and I also can't find and select it based on the following criteria:

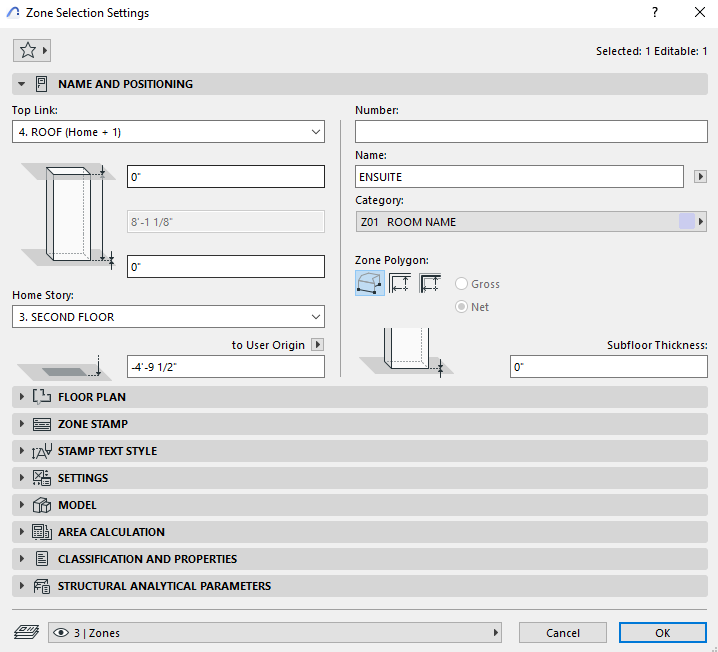

The zone selection settings are:








The wall selection settings are:






However, if I change the wall bottom offset to home story to 3'-7 1/4" or less, then it will appear in the schedule, and I can also find & select it with the above criteria.



All of the elements are fully within the zone. Any ideas why this wall acts this way?










Operating system used: Windows 10.0.19045

AC27 USA - build 5003
HP ZBook 15 G6
Intel(R) Core(TM) i7-9850H CPU @ 2.60GHz, 16GB RAM
Windows 10 Pro
3 REPLIES 3
Laszlo Nagy
Community Admin
Community Admin

Can you show how many Zones touch the Wall in question?

I don't know how Archicad decides which Zone to list if it touches multiple Zones.

Can you create a schedule that lists only the Wall in question and shows the "Related Zone Name" field?

Loving Archicad since 1995 - Find Archicad Tips at x.com/laszlonagy
AMD Ryzen9 5900X CPU, 64 GB RAM 3600 MHz, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), Windows 10 PRO ENG, Ac20-Ac27

The wall is fully enclosed in the zone and does not touch any other zone.

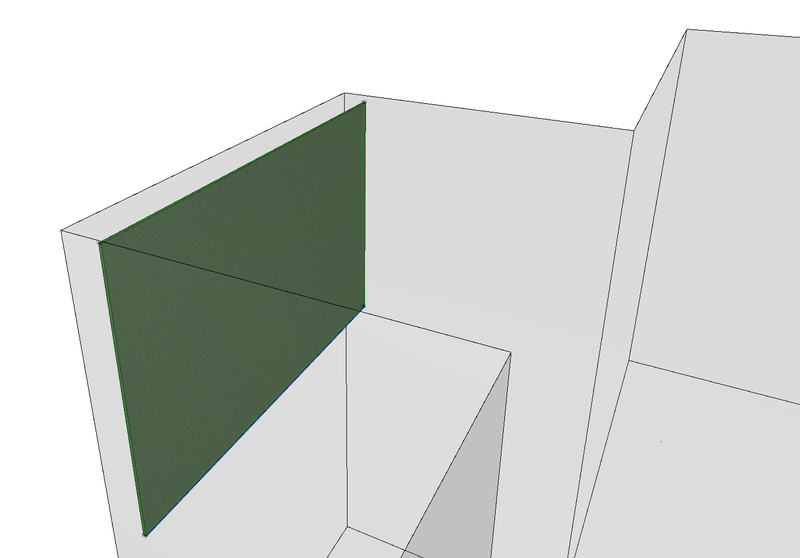

Screenshot of the selected wall within the zone.






And the wall does not appear to be related to any zone according to this schedule.




I've played around with the settings and discovered that if I change the floor plan display option of the wall from "Projected" to "Projected with Overhead", the wall will appear in the schedule and show as related to the "Ensuite" zone.



Is this behavior the way Archicad zones and schedules are supposed to work? This is my first time using zones for anything other than room names.

AC27 USA - build 5003
HP ZBook 15 G6
Intel(R) Core(TM) i7-9850H CPU @ 2.60GHz, 16GB RAM
Windows 10 Pro
Laszlo Nagy
Community Admin
Community Admin

That is interesting. So even though there is a single Related Zone for the Wall, it is not reported in the schedule.

This may be a bug so I will report it to GS HQ.

Loving Archicad since 1995 - Find Archicad Tips at x.com/laszlonagy
AMD Ryzen9 5900X CPU, 64 GB RAM 3600 MHz, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), Windows 10 PRO ENG, Ac20-Ac27
