overlapping zones

[Anonymous]

How to find overlapped zones ?

[Dave Seabury]

Pablo

Select the Zone zone tool, with the zone tool selected do a cntrl A to select
all the zones at once. Now look to see which are overlapping.

David

[Anonymous]

What if i dont trust my eyes
i mean i need to be sure ... many zones on many floors ...

[Erwin Edel]

Do you mean two zones next to eachother with a slight overlap, or two identical zones sitting on top of eachother? For the last one you can install the Check Duplicates tool from Help > ArchiCAD downloads.

For the first one if you make sure that there are zone boundaries setup (walls, collumns, curtainwalls, polylines, etc) you can use the Inner Edge method of automatic zones and should never have overlaps.

[Gerald D Lock]

We use the following system (a visual check - sorry, doesn't seem to be a way to automatically audit using ArchiCAD)

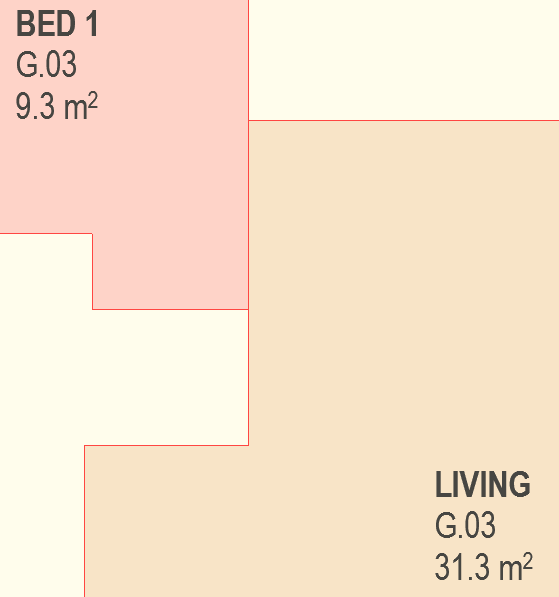

1. Set each Zone to have cover fill ON (50% foreground pen and zero background pen), and Zone contour line ON (we use a 0.25mm red pen)
2. Set a model view option (pre v20)/graphic override with no zone category fill

Overlapping % fills show up as darker colour. If the zone boundaries are not correctly aligned, the contour lines also make this obvious

[Gerald D Lock]

overlapping zones

[Erick Thomas]

The subject is now a little bit old but I wonder if the problem was solved? I have the same issue right now.

[Erwin Edel]

The easiest solution that I also pointed out 5 years ago is to use zone boundaries with automatic updating, rather than manual drafting of zones. A lot of elements can operate as a zone boundary. Ussually these are walls and collumns, but a line or polyline can also be set as a zone boundary.
