2D Symbol Display Trouble in Schedule

Dave Seabury
Advocate
I have created a few electrical symbols that allow the symbol to be rotated
and keep the script (height script in this case) to remain the same regardless of the rotation.

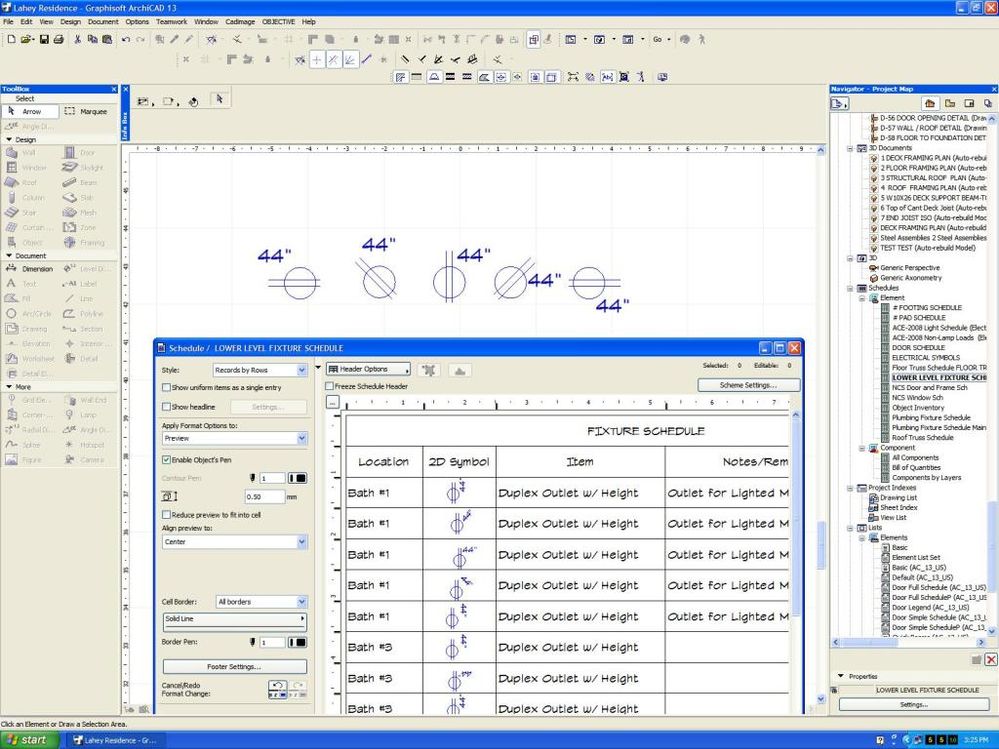

The attached screen shot shows 5 Duplex outlets each advancing 45 degrees. The symbols look correct as placed, but when scheduled
they appear to have a mind of their own (first five listings in schedule)

Is there a way to control the 2d symbol in the schedule?

thanks in advance

David
AC 19-24 Windows 10 64 bit, Dell Prercision 7820, Xeon Silver 2414R ( 12 Cores), 64 GB Ram, Quadro RTX 4000 8GB
4 REPLIES 4
Barry Kelly
Moderator
Dave,
I hope you are still monitoring this.
I found a solution - this has been bugging me for ages as well.

In you object(s) at the beginging of the 2D script type the following.

if GLOB_CONTEXT = 6 then
SYMB_ROTANGLE = 0
endif


This won't affect what you see in plan.
It just assures that when viewed in the schedule (GLOB_CONTEXT = 6) that the 2D symbol is not rotated.
So now it will appear correctly all the time regardles of how it is rotated in the plan.

Barry.
One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Rod Jurich
Contributor
Cheers Barry, this has bugged me also.
Many thanks.
Rod Jurich
AC4.55 - AC14 INT (4204) |  | OBJECTiVE |
Dave Seabury
Advocate
Barry,

I'll give it a try and report back, thanks for the help.

David
AC 19-24 Windows 10 64 bit, Dell Prercision 7820, Xeon Silver 2414R ( 12 Cores), 64 GB Ram, Quadro RTX 4000 8GB
Dave Seabury
Advocate
Barry,

Works like a charm, thanks for taking the time to figure this out.

Much appreciated,

David
AC 19-24 Windows 10 64 bit, Dell Prercision 7820, Xeon Silver 2414R ( 12 Cores), 64 GB Ram, Quadro RTX 4000 8GB
