How do you get a line view in Perspective in stead of a rendered view.
5 REPLIES 5

Barry Kelly
Moderator
Why the poll - there really is no need for it?

You have two engines to view 3D models.

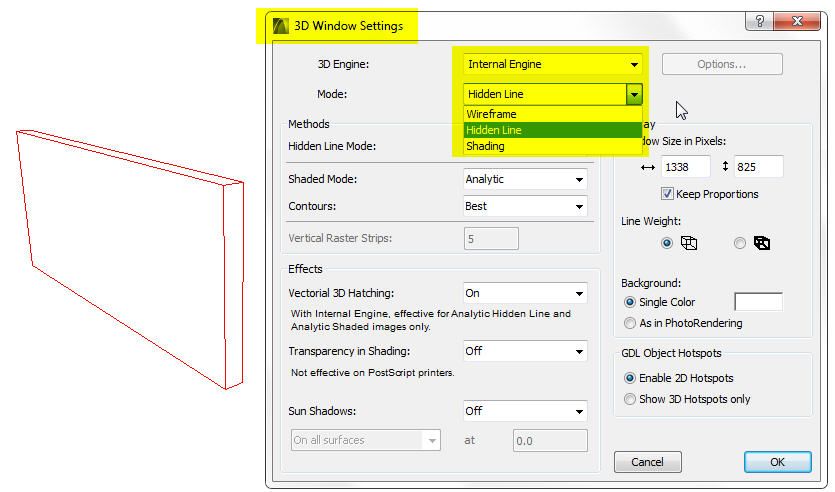

The internal engine which has an option for hidden line which is what you are after.
The OpenGL engine does not have this option - only shaded or wire frame, so you will need to switch to the Internal engine to do what you want.

The other option is a 3D Document (this automatically uses the Internal engine (i.e. no textures only colours for surfaces).
Here you can over-ride the surface colours making them white to give the effect you want.
The advantage of a 3D Document is you can annotate it with text and dimensions which you can't do in a standard 3D view.

Barry.

One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

Anonymous
Not applicable
Sorry about the Poll it's the first time ive use this, I was just experimenting.
But thanks Barry for the help that's excellent!

Barry Kelly
Moderator
Inventor wrote:
Sorry about the Poll it's the first time ive use this, I was just experimenting.
But thanks Barry for the help that's excellent!
That's fine.
I have also renamed the subject to something more appropriate to help others if they ever need to search for a similar subject.

Barry.

One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

Laszlo Nagy
Community Admin
Community Admin
I have deleted the poll as it was not needed.
....................................................................................................
Laszlo Nagy, Lead Moderator, Community Admin
Get Archicad Tips at https://twitter.com/laszlonagy
AMD Ryzen 1700X CPU, 48 GB RAM, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), WIN10 PRO ENG, AC20-AC25
Loving Archicad since 1995

Anonymous
Not applicable
...Or you render with Sketch engine in PhotoRender Settings if that is the look you are after.
