Window with different thickness of inner frame

Hi maybe is't super simple but couldn't find out right window for my case.



I wanna have quite simple window witch 3x2

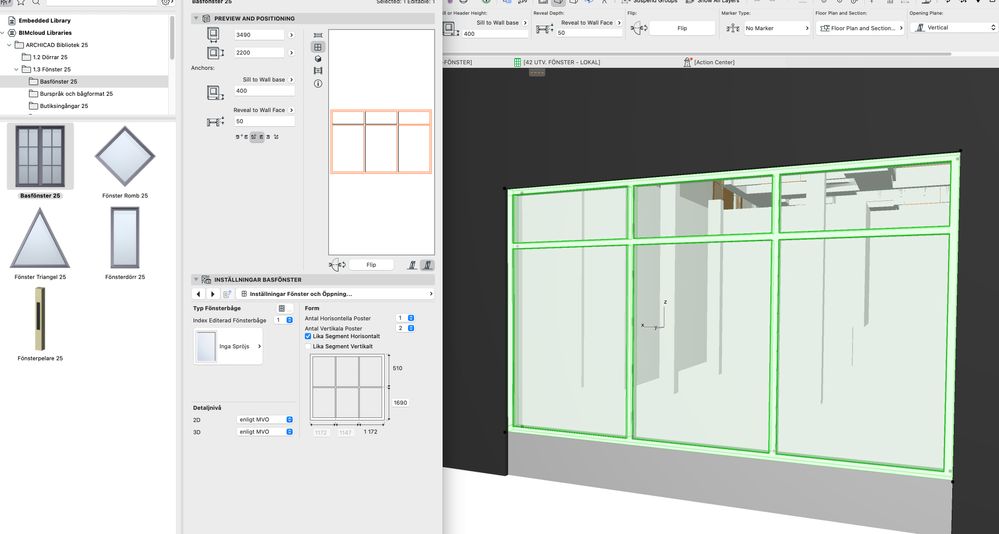

Skärmavbild 2023-02-14 kl. 09.51.13.jpg



But I with inner frames with thicker 116mm because behind the window are pillars

I can do that all of them have 116mm but this is not what i want.



I cane make model with two windows like this :

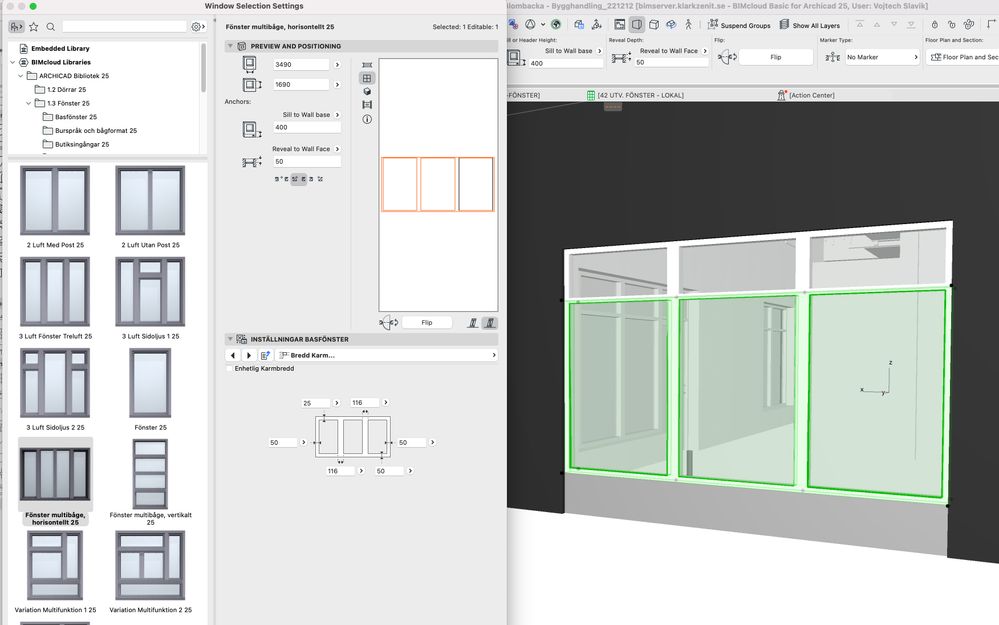

Skärmavbild 2023-02-14 kl. 09.51.27.jpg



But after then I have two windows and for my windows schedule it's not good for understanding






Can i merge this windows somehow ?



I need just good kick 😉 where is the good window for my case.

I don't wanna do curtain walls for just this.



Thanks for any advice.



AC 7 - 27 SWE

iMac (Retina 5K, 27-inch, 2020),

3,6 GHz 10-Core intel Core i9, 64 GB 2667 MHz DDR4, AMD Radeon Pro 5700 XT 16 GB
1 ACCEPTED SOLUTION

Accepted Solutions
Solution
Joe Logiudice
Graphisoft Moderator
Graphisoft Moderator

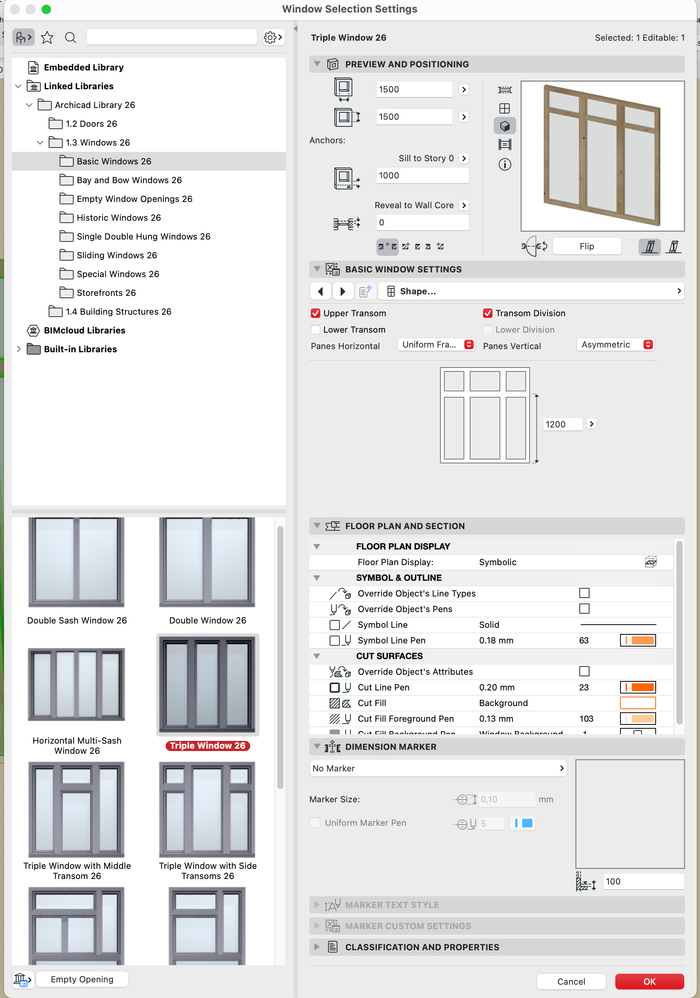

Hi, try to use Triple window

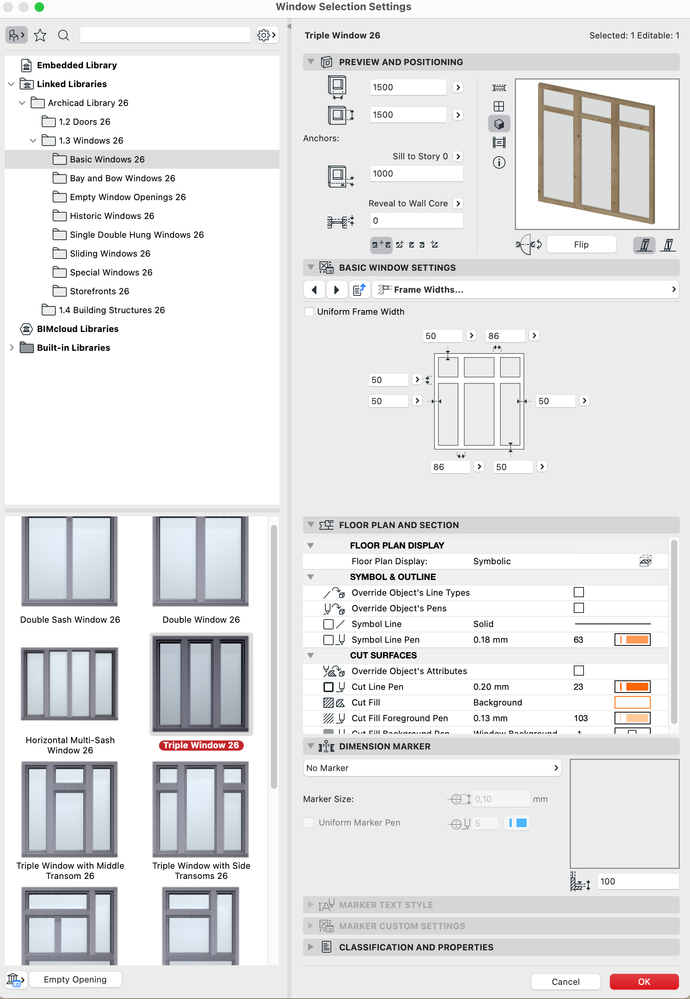

divisionsdivisionsframe widthframe width

Giovanni Logiudice

Educational Community Expert, Moderator

Certified GRAPHISOFT ARCHICAD BIM Manager

View solution in original post

2 REPLIES 2
Solution
Joe Logiudice
Graphisoft Moderator
Graphisoft Moderator

Hi, try to use Triple window



divisionsdivisionsframe widthframe width

Giovanni Logiudice

Educational Community Expert, Moderator

Certified GRAPHISOFT ARCHICAD BIM Manager

Nice thanks 👍
