Circular guideline from origin point appears when moving elements - how to turn off?

Liamthanks
Booster

Hi all,



I have tried searching for the relevant setting but have not had any luck, however I am hoping it's a relatively easy solution.

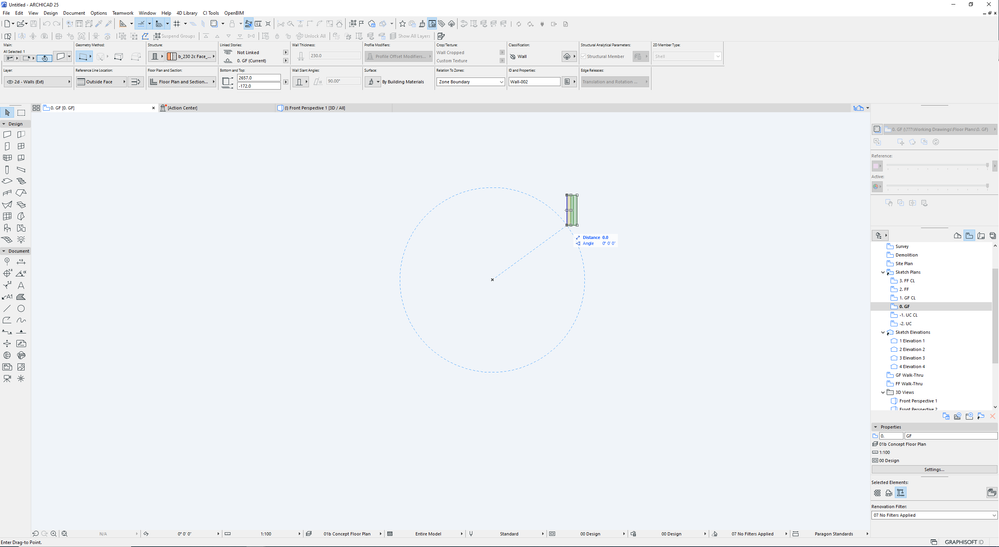

When I go to move any object around, I keep getting a circular guideline appear from the drawing origin point and it's annoying me. I haven't always had it, so can only assume I've accidentally turned it on some how?


AC24 Build 7000 AUS - Windows 10 Pro, Ryzen 7 5800X, Radeon 5700 XT, M.2 NVME 0.5TB SSD, 32GB RAM
1 ACCEPTED SOLUTION

Accepted Solutions
Solution
Barry Kelly
Moderator

Are your delta buttons active for the coordinates?






Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

View solution in original post

6 REPLIES 6
Solution
Barry Kelly
Moderator

Are your delta buttons active for the coordinates?






Barry.

One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Hey Barry,



What toolbar are these options located in?


If I turn off Snap Guides the issue resolves, but then I lose all the other snap guides as well.

AC24 Build 7000 AUS - Windows 10 Pro, Ryzen 7 5800X, Radeon 5700 XT, M.2 NVME 0.5TB SSD, 32GB RAM
AllanP
Advocate

Hi,

those are snap guides.

if you leave your mouse over a point for more than 2 seconds, it gives you a temporary measurement point and those lines/circles from any other temporary measurement point.

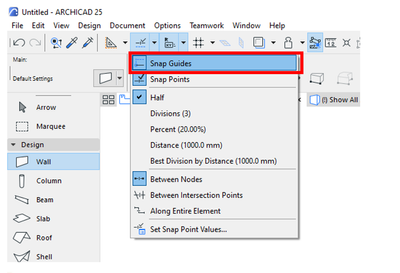

to turn them off you can select the snap guide icon


or

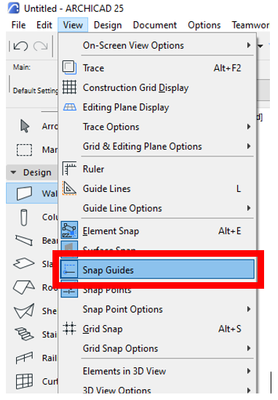

go to the view menu






The Coordinates are located in the  coordinate pallet




i hope that helps















I have been using ArchiCAD continually since ArchiCAD 4.5, 4.5.5, 5, 5.1, 6, 6.5, 7, 8, 8.1, 9, 10, 11, 12, 13, 15, 18, 21, 22, 25, now testing 27
Member of Architalk since 2003, but missed the migration to Graphisoft.
(where have all my original posts gone?)

@Liamthanks wrote:

What toolbar are these options located in?


It is a 'Palette' rather than a toolbar.

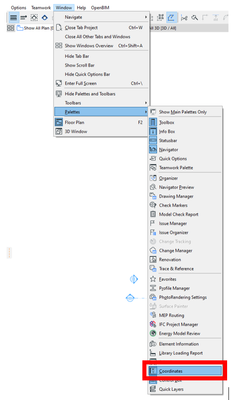

Windows menu > Palettes > Coordinates.



Barry.





One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Thanks Barry, turning that setting on appears to have resolved the issue and I've now updated my default work environment to suit.



Cheers!

AC24 Build 7000 AUS - Windows 10 Pro, Ryzen 7 5800X, Radeon 5700 XT, M.2 NVME 0.5TB SSD, 32GB RAM

I am not sure if there is another way to swap between absolute/relative co-ordinates (i.e. menus or other tool bars).

I have always had that palette active at the bottom of the screen (it used to be a default palette - I am not sure if it is any more).

I like it because it also has buttons for the user origin/origin reset, rotated/ortho grids, grid snap and gravity (not needed so much any more).
