Architectural Seal

nathanburkholder · ‎2022-09-02

Hello,

I have my drawing seal in CAD Format. When i Xref it into Archicad the arched text around the circle is straight across. Anyway to correct this?

Lingwisyer · ‎2022-09-02

Bring it in as an object rather than an xref.

AC22-23 AUS 7000	Help Those Help You - Add a Signature
Self-taught, bend it till it breaks	Creating a Thread
Win11 \| i9 10850K \| 64GB \| RX6600	Win10 \| R5 2600 \| 16GB \| GTX1660

nathanburkholder · ‎2022-09-02

i gave it a shot and it still doesn't show correctly. I shared a screenshot. The object actual removed my name and license number, etc.

nathanburkholder · ‎2022-09-02

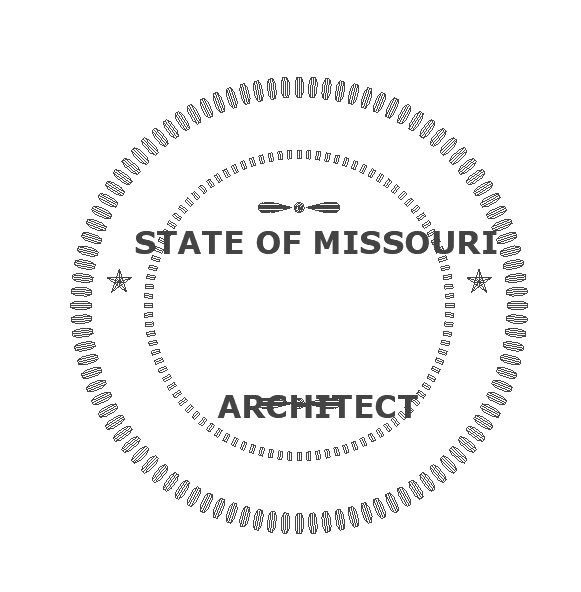

I actually found the missing information would be inputted to the properties, so that's pretty cool. BUT the text that should arch around the circle still only goes across. as shown in the previous image.

Dave Jochum · ‎2022-09-02

Save your stamp as a PDF, JPG, or TIFF, then File-->External Content-->Place External Drawing.

Dave Jochum
J o c h u m A R C H I T E C T S http://www.jochumarchitects.com
MBP 16" (M1 Max) 64 GB•OS 13.5.2•AC 27 Silicon (latest build)

Barry Kelly · ‎2022-09-02

Archicad can not do text along a curved path.

So if the CAD file you are using has text formatted in a curve, it will not translate to Archicad.

Each character will have to be a separate piece of text, positioned and rotated to form the curve.

Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Mahmoud Qenawi · ‎2022-09-04

Hi @nathanburkholder, you can try to create your seal text like this way in the video :

https://youtu.be/2ZIB8S1TL2w
I hope it helps.

AC 28 INT 3110/WIN 11
AMD Ryzen 7 5800H with Radeon Graphics 3.20 GHz 16.0 GB
