Dimensions : Switch between core & wall face

Johann_P
Advocate

I'm trying to dimension a project.



In the Structural Display I need to see Entire Model, but only dimension to the face of the core.

In the same view, there are instances where I need to dimension to the face of the wall finish.



The building has multiple angles, and I'm not using the "automatic dimension" tool



How do I switch between "dimension to core" and "dimension to finish"?

Can I display both in a single view?





ArchiCAD24 - since Nov 2020
Revit - 2005 to 2020
Windows 10 Pro
2 screens: nvidia quadro RTX 4000
2 REPLIES 2
Johann_P
Advocate

nvm......


Found it.

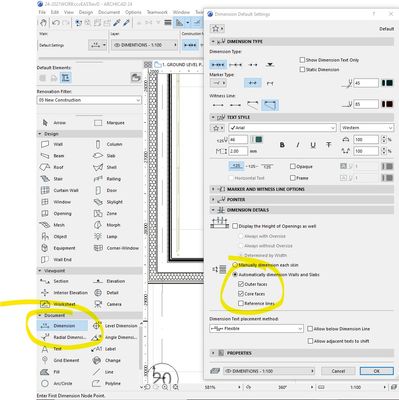

Double click "dimension" and the settings open.






ArchiCAD24 - since Nov 2020
Revit - 2005 to 2020
Windows 10 Pro
2 screens: nvidia quadro RTX 4000

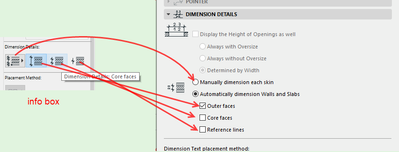

You can also add them to your info box (via Work Environment settings) if they are not already there by default.
