Graphic override thin line doesn't effect 2d door and window line pen

Geof Gainer
Booster

In graphic override, with the "All Cut Fills - Thin Line" rule applied, it doesn't seem to affect the line pen for the sides of doors and windows. Any way around that?

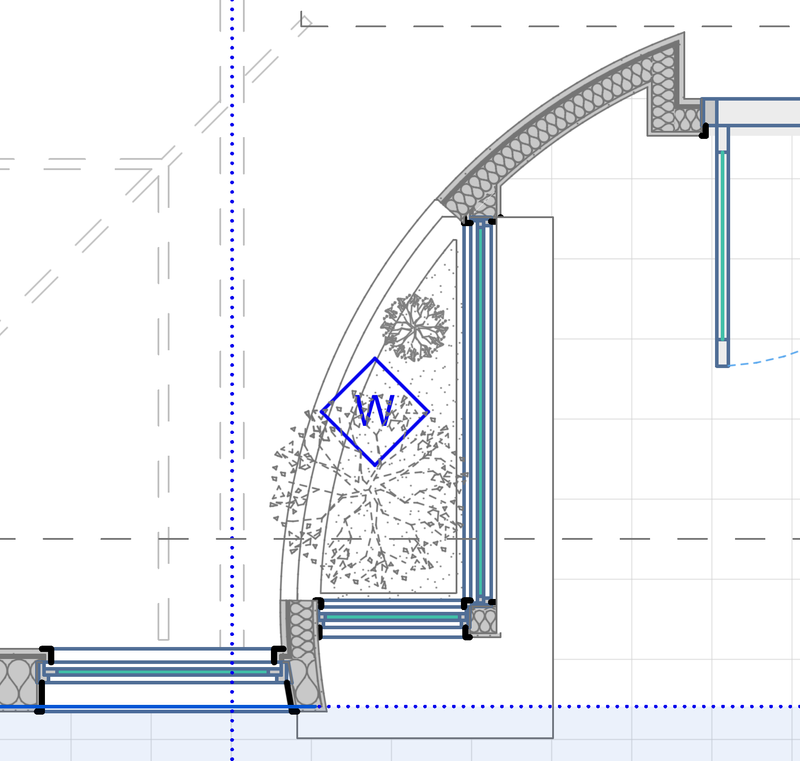

Screenshot 2024-01-15 at 10.50.56 AM.png

AC fan since v 7. Currently on AC 26 Build 5003 USA FULL Apple Silicon,. 2022 Mac Studio, 32G ram. OS X 12.6.2
2 REPLIES 2
lopezfigueroa
Enthusiast

Hi Geof Gainer.
Check that the object line types in this tab are not overwritten.




Geof Gainer
Booster

Hm, they were not overwritten, but overriding them with a thinner pen type worked. I'm not sure that's my best solution--I'll have to see if that makes things conflict with the appearance of other views. Thanks!
