Grid Line display order in 3D Document

Dave Brach
Advocate

I have created a top view 3d document for use as a Roof Plan.  But I am unable to get the Grid Lines to show on top of the drawing.  I have to turn off the mesh to see them or select them, and even then I cannot "bring to front" in the display order.

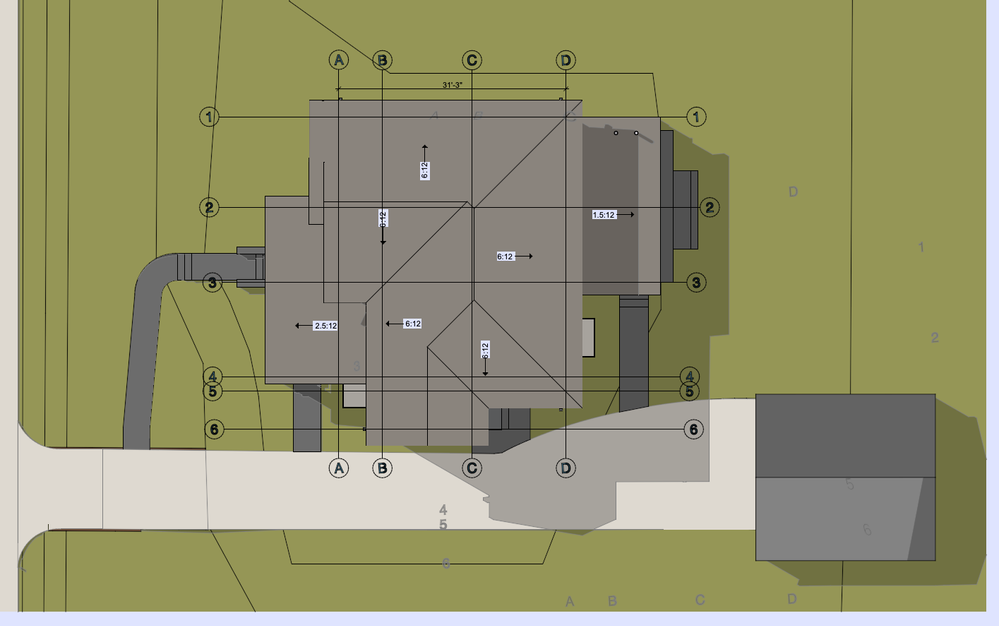

Screenshot 2024-01-22 at 3.26.59 PM.png

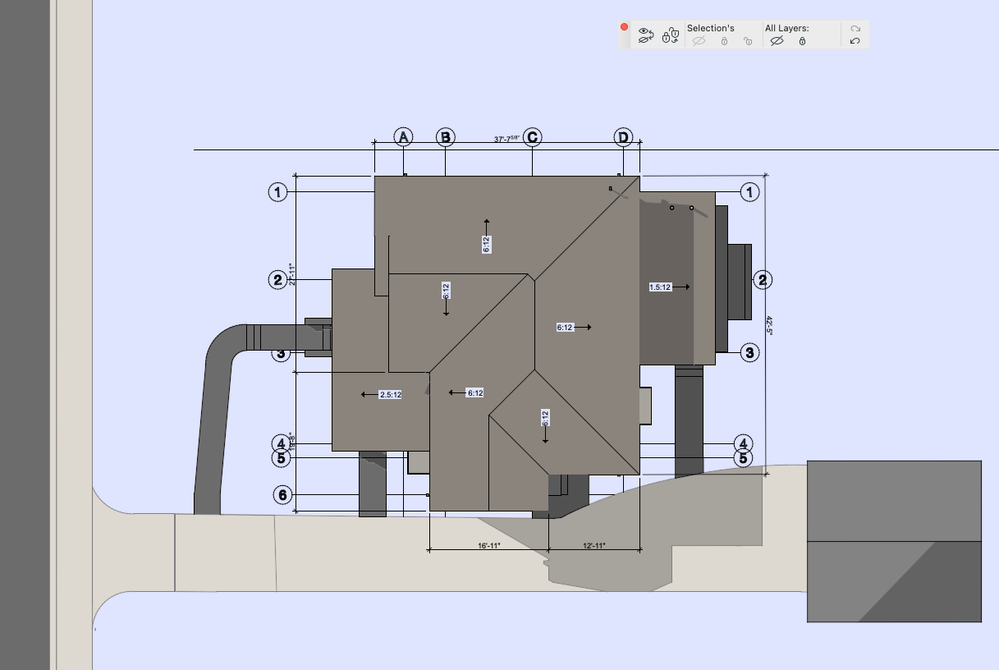

Screenshot 2024-01-22 at 3.27.59 PM.png

Dave Brach/architect
AC26 MBP OS Ventura
AMD Radeon Pro 5300M 4 GB
Intel UHD Graphics 630 1536 MB
1 ACCEPTED SOLUTION

Accepted Solutions
Solution

Hi @Dave Brach,

You can see your grid above the mesh if you elevate the grid level to the top surface of the mesh from this dialogue via (to project zero).



Screenshot 2024-01-23 092005.png

AC 27 INT 5003 - AC 26 INT 6019 ( For MEP Purposes )
AMD Ryzen 7 5800H with Radeon Graphics 3.20 GHz 16.0 GB

View solution in original post

3 REPLIES 3
Solution

Hi @Dave Brach,

You can see your grid above the mesh if you elevate the grid level to the top surface of the mesh from this dialogue via (to project zero).



Screenshot 2024-01-23 092005.png

AC 27 INT 5003 - AC 26 INT 6019 ( For MEP Purposes )
AMD Ryzen 7 5800H with Radeon Graphics 3.20 GHz 16.0 GB

Mahmoud, thank you, that works!  Of course now I am seeing why it would be nice to be able to adjust the linetype;  also, the Grid numbers/letters are casting shadows

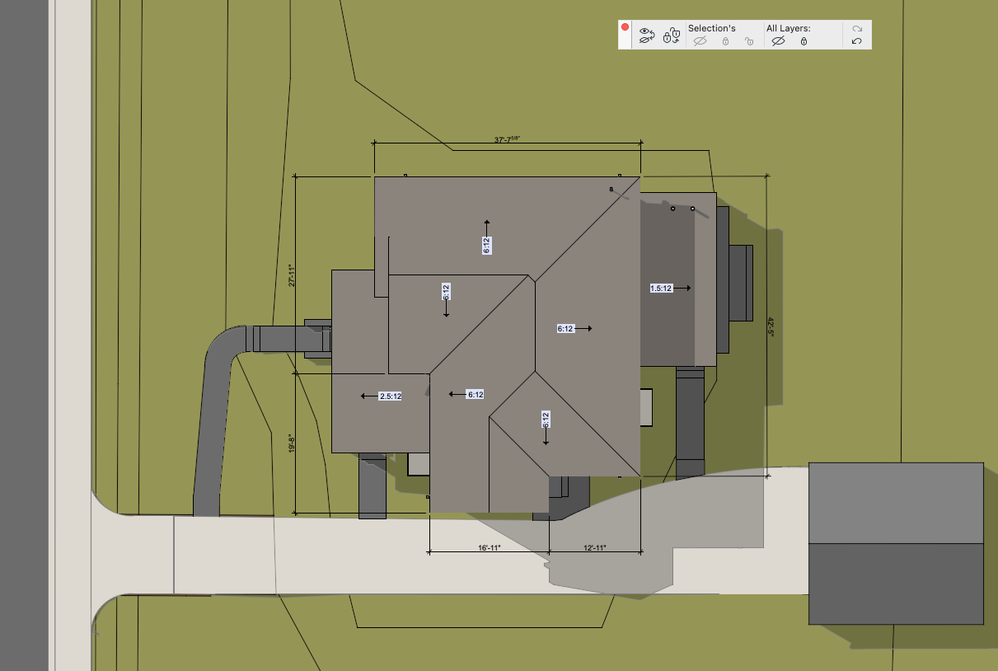

Screenshot 2024-01-23 at 8.17.45 AM.png

Dave Brach/architect
AC26 MBP OS Ventura
AMD Radeon Pro 5300M 4 GB
Intel UHD Graphics 630 1536 MB

Thanks Dave, you're welcome.

AC 27 INT 5003 - AC 26 INT 6019 ( For MEP Purposes )
AMD Ryzen 7 5800H with Radeon Graphics 3.20 GHz 16.0 GB
