How do I show uncut window solid panels in colour in elevation on a white model?

Kitson04
Newcomer

I am having trouble solving this issue.

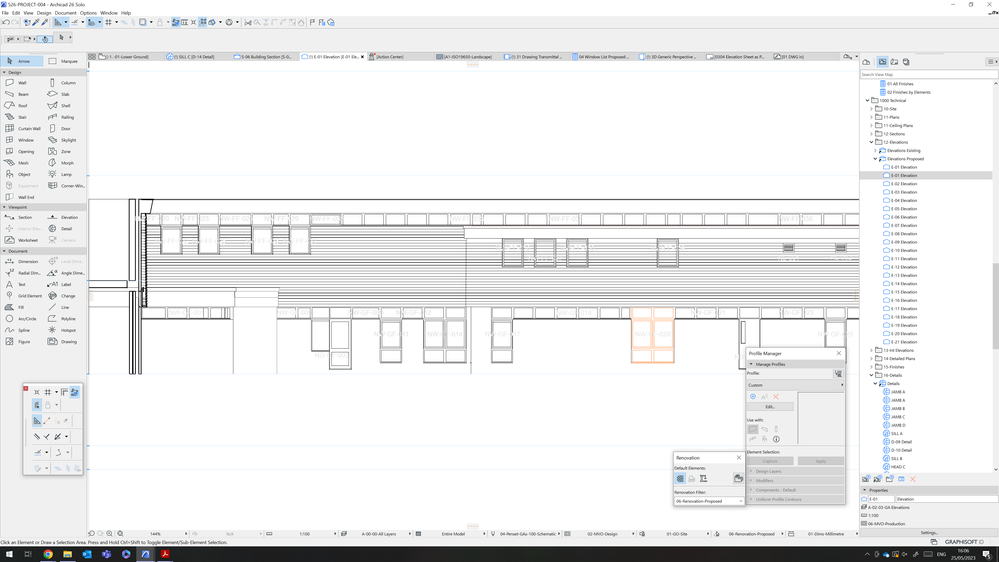

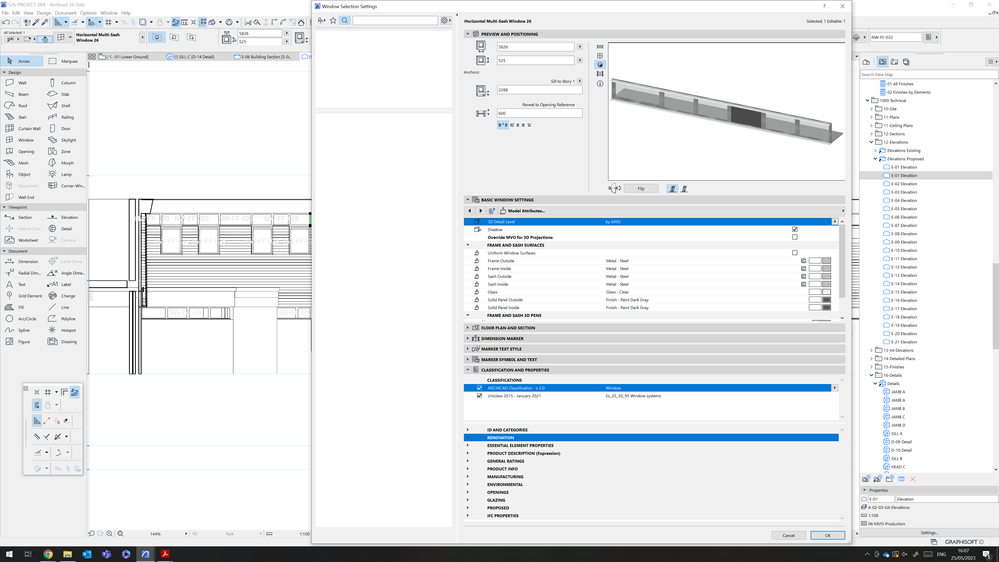

I want to be able to retain a white model but also show solid panels on windows that have them in elevation.Screenshot (34).pngScreenshot (35).png

1 ACCEPTED SOLUTION

Accepted Solutions
Solution
Barry Kelly
Moderator

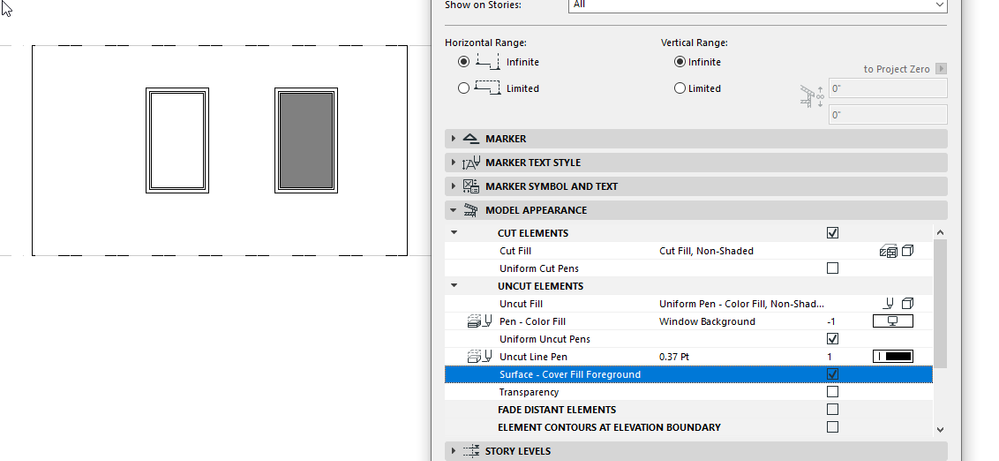

Give the surface used for your solid panel material a 50% hatch (or similar).

Make sure you have 'Surface Cover - Foreground' active (used to be call Vectorial 3D Hatching).








Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
