Survey point in AC 23

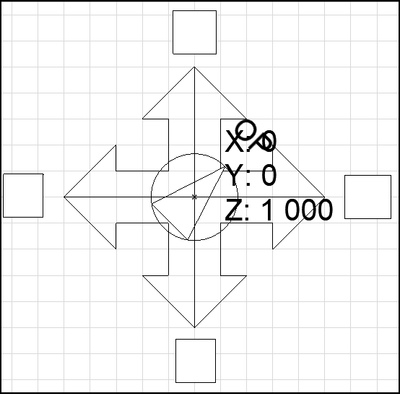

I've started looking into the use of survey-point in AC23.  I've modelled a compass, to make it easy to see what is happening. Immidietly I see this in Zoom:

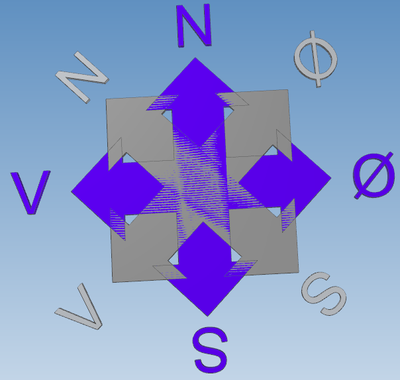

The blue compass is with the default values set,  that means that true North is set as 90°. However, when I set the True North to 45°, do an export and compare, I get what you see in the first picture.


So, here is my question: As shown, in plan I've rotated clockwise, but in the export it is, as far as I can figure, rotated conunter-clockwise. The grey S should have been where the grey V is, in my opinion..


Is it something I forgot to tick in the Settings?



Windows 10, Archicad 27
