Veneer wall

Hi there. How can I change a double brick veneer wall to a black solid veneer wall in my floor plan?










Operating system used: Mac Apple Silicon

2 ACCEPTED SOLUTIONS

Accepted Solutions
Solution
mthd
Ace

The first part of this video should give you a generic method of how to create an external solid brick wall composite.



https://www.youtube.com/watch?v=WCGJMHn2BwY



Hope this helps ?



AC8.1 - AC27 ARM AUS + CI Tools
Apple Mac Studio M1 Max Chip 10C CPU
24C GPU 7.8TF 32GB RAM OS Ventura

View solution in original post

Solution

This should all be in the default template.














Barry.



One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

View solution in original post

24 REPLIES 24
Barry Kelly
Moderator

You mean fill in the cavity?

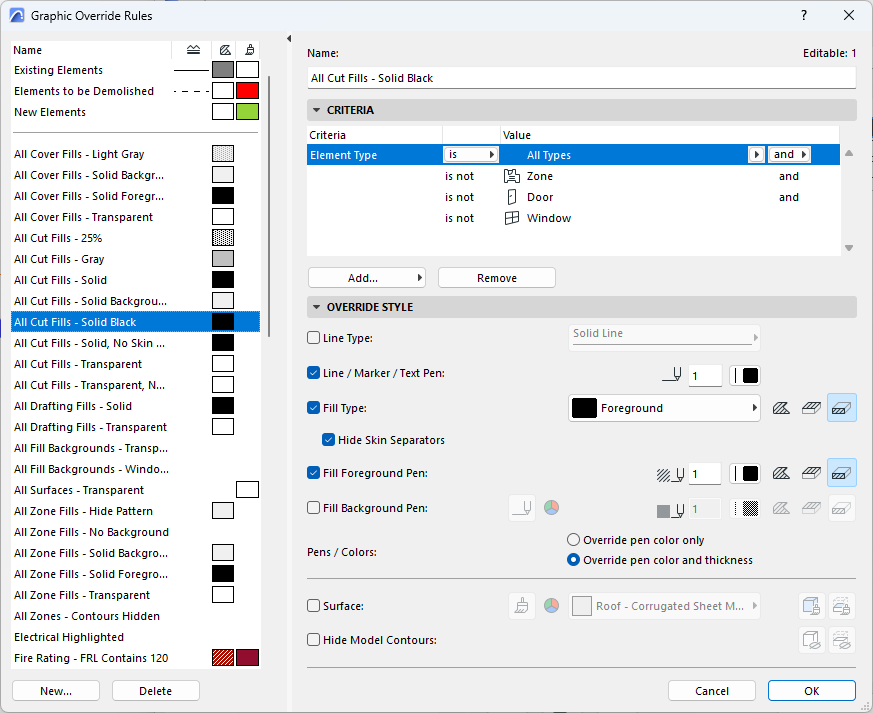

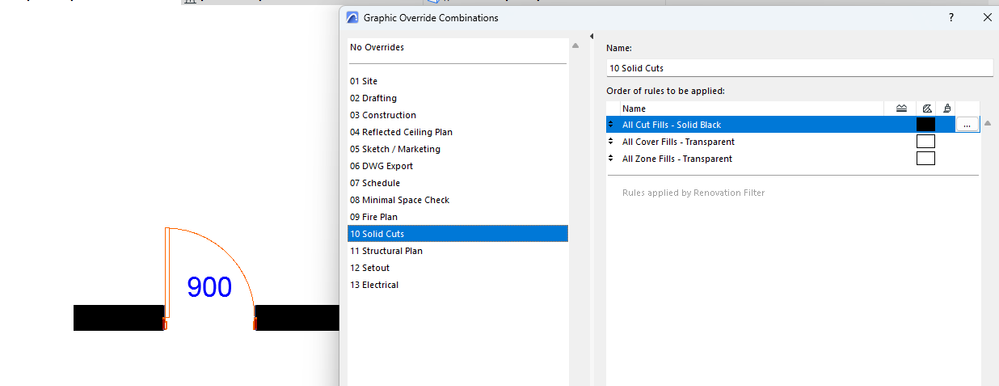

Graphic Overrides will help.

You should have a rule that turns all cut fills solid & black.



Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Solution
mthd
Ace

The first part of this video should give you a generic method of how to create an external solid brick wall composite.



https://www.youtube.com/watch?v=WCGJMHn2BwY



Hope this helps ?



AC8.1 - AC27 ARM AUS + CI Tools
Apple Mac Studio M1 Max Chip 10C CPU
24C GPU 7.8TF 32GB RAM OS Ventura

I mean the double bricks should have shown in solid black.

Barry, the graphic overrides not working  for this case. could you please provide more assistance?

Solution

This should all be in the default template.














Barry.



One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Thanks Barry, how to show the cavity as a white colour?

Ignore above. Problem resolved. Please answer my question about window patterns in another post. Thank you so much

For that, I would just use an alternative pen set rather than Graphic Overrides.

Just have a pen set that turns the wall fill pen colours to black.



Of course this will affect anything else that uses those pen colours - so may not be the solution you are looking for.

But if the entire plan is to be black and white, that should not be a problem.



Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

BarrySorry for bothering you again. I set my floor plan to all black solid fills, but when I switch to another view and come back to the floor plan, it resets to the previous setting.
