When rotating a drawing, the dimension text is flipped.

LeeJaeYoung
Virtuoso

When rotating a drawing, the dimension text is flipped.
How can I obtain normal dimensional text positions?

스크린샷 2023-10-10 150230.png

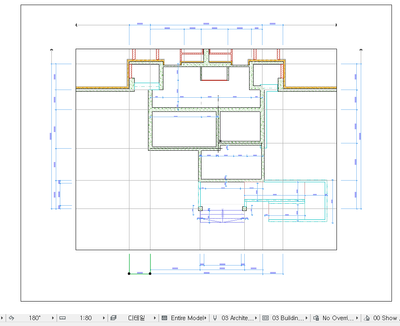

 1. Rotated 180 degrees.
So far, these are the dimensions I want.

스크린샷 2023-10-10 150405.png

2. I placed it in the layout, but it was not rotated 180 degrees as in the view,

so I rotated it 180 degrees as shown below.

스크린샷 2023-10-10 150604.png

스크린샷 2023-10-10 151402.png

How can I create the same dimensions as the view in Layout?

AC27 on window 11
1 REPLY 1
Gerry Leonor
Advisor

we never rotate drawings 180 degrees.

90° perhaps -- a tall building laid horizontally on a landscape-oriented sheet -- but never 180°.

the reason is it because it stuffs up the dimension text locations, text orientations & some labels.



better to rotate the view in your floor plan, document, save the view & place it on your layout.
