Complex profile - lines won't connect propertly on floor plan

Anatatj
Contributor

Hello,

I made complex profile for my fundation. In 3d view is ok, but in floor plan is not, for some reason lines won't connect propertly. If i change junction order in wall setting it does not help. Any tip?

Profile:


Plan view:


changing junction order:




3d:




Than you!



Operating system used: Windows

1 ACCEPTED SOLUTION

Accepted Solutions
Solution
Barry Kelly
Moderator

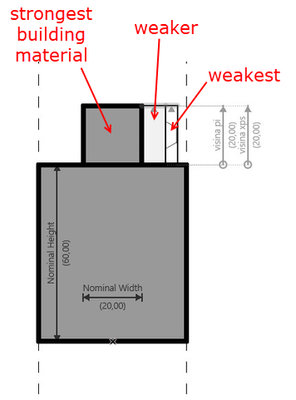

Try checking the strength of the building materials you have used for the wills.

The main part of the wall needs to be the strongest, so they always connect.

The outer skins need to be weaker.






Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

View solution in original post

3 REPLIES 3
Solution
Barry Kelly
Moderator

Try checking the strength of the building materials you have used for the wills.

The main part of the wall needs to be the strongest, so they always connect.

The outer skins need to be weaker.






Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Lingwisyer
Guru

You could try putting faux layers on the outside that match the materials of the inside. PBI will wrap them instead of terminating them then. This works for Composites, though it prevents Surface Override of the relevant face, but I am not sure if it would work for Complex Profiles.
