Elbow Factor Radius

Hilario Bourg
Contributor

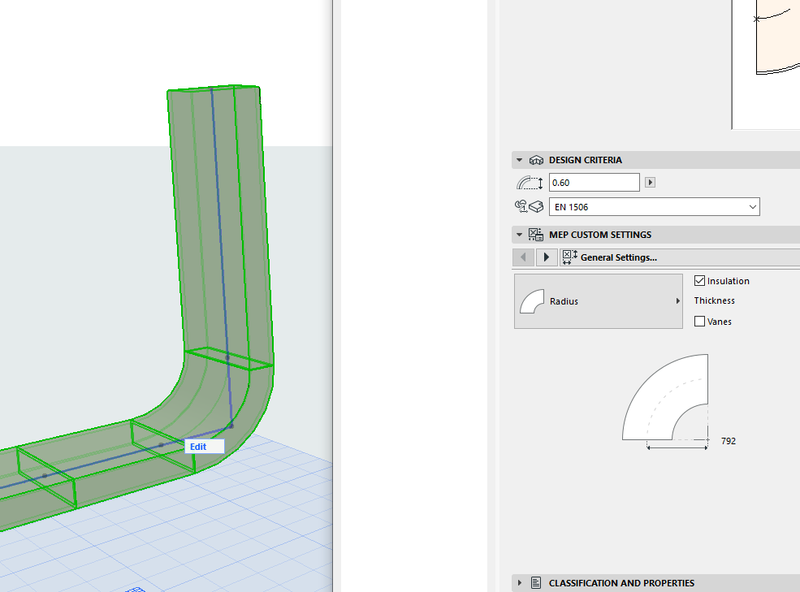

In case of a large duct (1320 x 220) the elbow curve is too large: factor radius can't be set less than 0.6.

It seems that Archicad reads the widht as it were the height and sets the curve consequently.










2 REPLIES 2
joaopina
Participant

Same problem here

joaopina
Participant

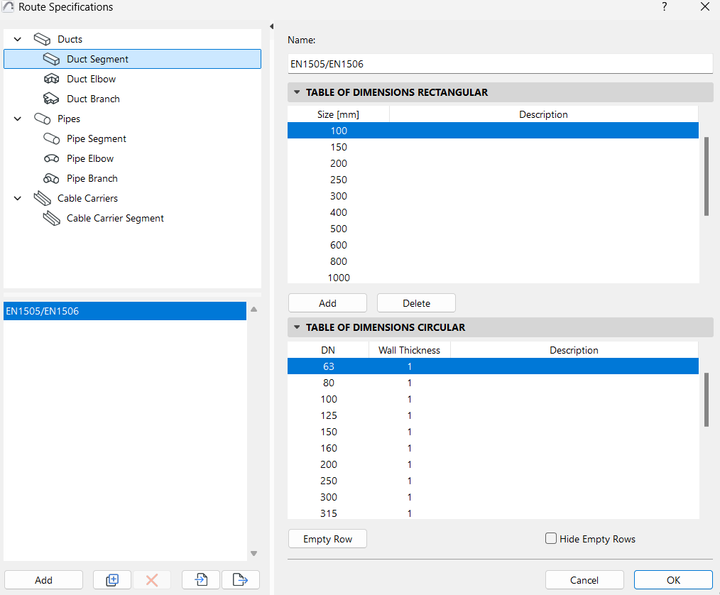

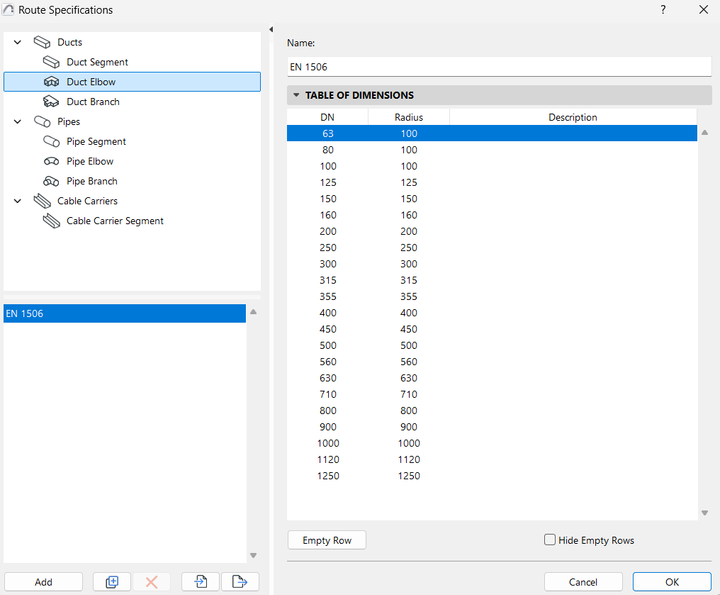

In the Route Preferences, archicad has a table for Duct Rigid that is splited with rectangular shapes and circular shapes, but the table for elbows is only considering circular shapes. I hope that Graphisoft has corrected that issue before the launch in this october.
