Floor Plan and Section Display of Columns

Zdenko
Enthusiast

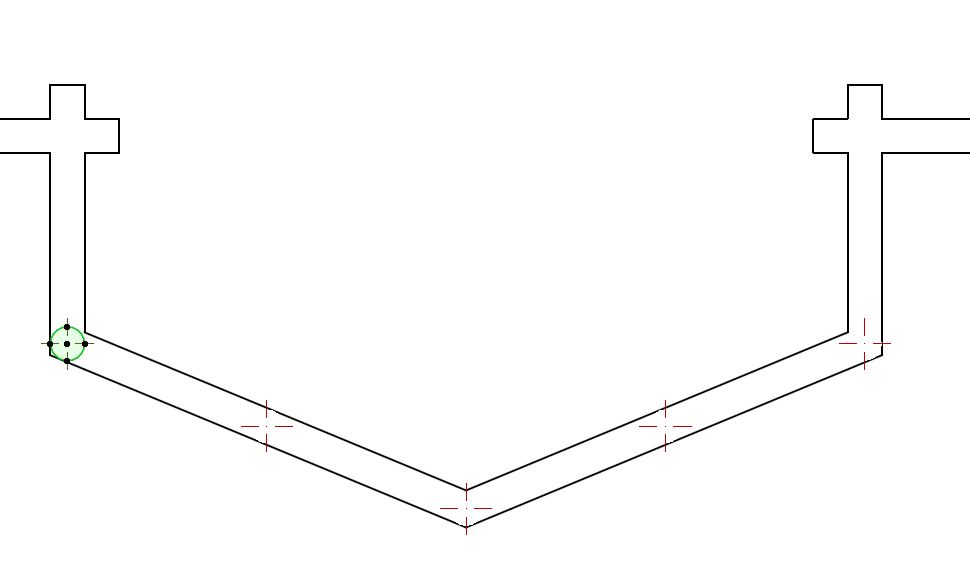

trying to better understand how to show column outline in wall.

Screenshot 2024-05-03 at 4.26.22 PM.png

Archicad 27 (3001 USA Full Intel Based MAC)
Sonoma 14.4.1
1 ACCEPTED SOLUTION

Accepted Solutions
Solution
Jp1138
Expert

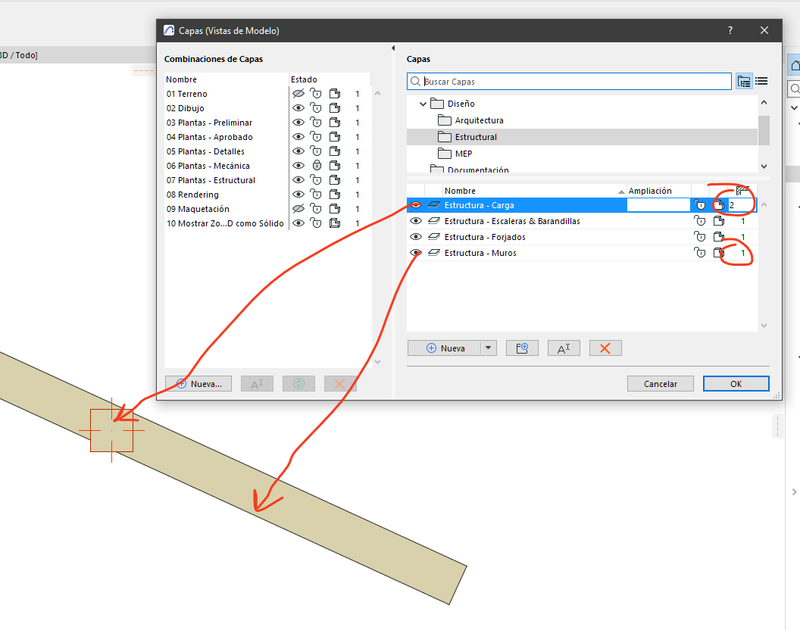

Columns and wall can be in different layers with different intersection groups, so they don´t interact with each other:






ARCHICAD 27 SPA
Windows 10

View solution in original post

7 REPLIES 7

Hi @Zdenko,

Set the column’s material to be different from wall’s material then bring columns to front.

AC 27 INT 5030/WIN 11
AMD Ryzen 7 5800H with Radeon Graphics 3.20 GHz 16.0 GB

both are "wood structural". do i need to then create another "wood structural" in building materials?

Archicad 27 (3001 USA Full Intel Based MAC)
Sonoma 14.4.1

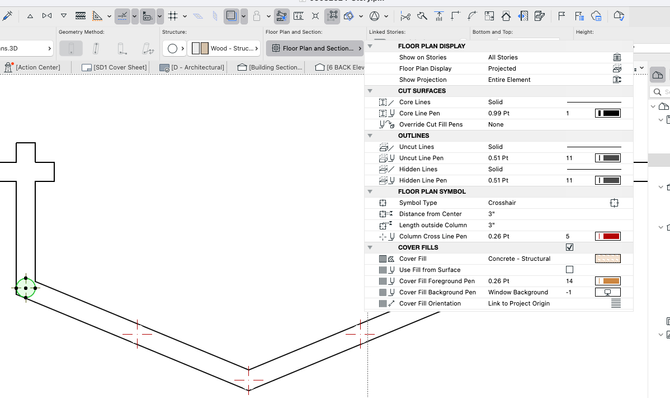

can i change things in here? still trying to figure out all of these options.

Screenshot 2024-05-06 at 9.39.35 AM.pngScreenshot 2024-05-06 at 9.39.49 AM.png

Archicad 27 (3001 USA Full Intel Based MAC)
Sonoma 14.4.1
Solution
Jp1138
Expert

Columns and wall can be in different layers with different intersection groups, so they don´t interact with each other:






ARCHICAD 27 SPA
Windows 10

muchas gracias jp1138!!!! i learned something today!

Archicad 27 (3001 USA Full Intel Based MAC)
Sonoma 14.4.1

@Zdenko,

I’m sorry for late response but thanks to @Jp1138, he helped me to remember something I forgot by time.

AC 27 INT 5030/WIN 11
AMD Ryzen 7 5800H with Radeon Graphics 3.20 GHz 16.0 GB

Maybe this old post will help explain columns and walls.
