How to model this ...??? HELP!!
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2010-01-21
02:45 PM
- last edited on
‎2023-05-25
06:07 PM
by
Rubia Torres
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2010-01-22 03:52 AM
and a noob question Erika how did you put the standard casing on the opening can't find that option on my openings..???

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2010-01-22 08:32 AM

I tend to prefer slabs to walls when doing things like this. I could have made it with walls and cut holes with door or window openings
in fact I made this coffer both ways. Well, I started, but the wall method was taking to long.
Anything that are multiples I create one and, you guessed it, multiplied it. cmd/ctrl+U is a great time saver. I did one side of the arch and then mirrored it to get the other.
The arch portion I made similarly, one int. support rotating copies, etc.
The custom profiles I created for the trim around the coffer are mirror images so I can draw the bottom leg, drag a copy up and then apply the mirror image so the trim faces down towards the original one.
Most of this was done in the 3D window. Only when I was placing the vert. trims in the arch and some rotating were easier to do in the plan window.
Architect, Consultant
MacBook Pro Retina, 15-inch Yosemite 2.8 GHz Intel Core i7 16 GB 1600 MHz DDR3
Mac OSX 10.11.1
AC5-18
Onuma System
"Implementing Successful Building Information Modeling"

- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2010-01-22 08:38 AM
Remember, this is just one way to accomplish this. Challenge yourself by thinking through the pieces from which in real life the coffered arch will be constructed.
HTH
Architect, Consultant
MacBook Pro Retina, 15-inch Yosemite 2.8 GHz Intel Core i7 16 GB 1600 MHz DDR3
Mac OSX 10.11.1
AC5-18
Onuma System
"Implementing Successful Building Information Modeling"
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2010-01-22 10:19 AM
onsnapcad wrote:The curves are made with walls. In fact it's all made of walls except the columns for the vertical trims in the assembly model (which become the horizontals in the installed door) and the slab for making the wall opening.
...and Matthew if you can explain your method to do the curved part...
There is a limitation to this method though. The walls and columns as panel trims don't clean up quite right at the corners if there are any undercuts in the profile. For example ovolos and ogees work fine but beads and band moldings fill in a bit badly at the corners.
Otherwise the walls and columns clean up nicely and automatically (no need for SEOs).
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2010-01-22 04:49 PM
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2010-01-23 05:36 AM
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2010-01-23 09:29 AM
- Mark as New
- Bookmark
- Subscribe
- Mute
- Subscribe to RSS Feed
- Permalink
- Report Inappropriate Content
‎2010-01-23 11:11 AM
onsnapcad wrote:OBJECTiVE can easily handle profiled compound curves - I posted an example at the following link:

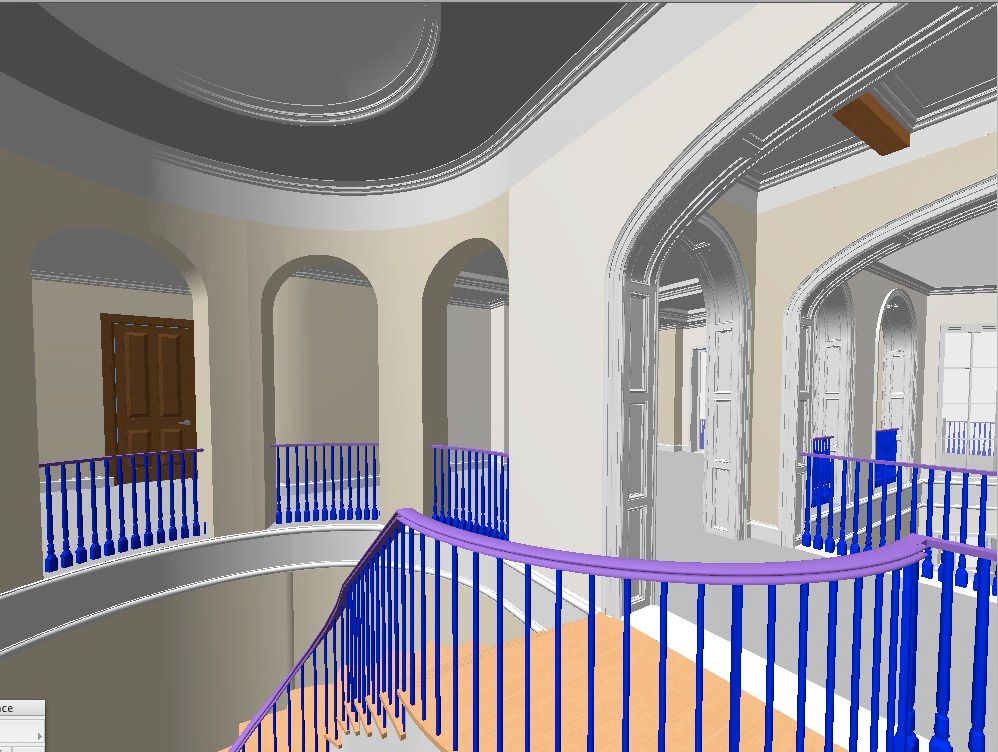

now another challenge, thanks to the help from Erika and Matthew I was able to create the arches including one with an ellipse, but now another thing came up.. javascript:emoticon(':?')how do I model the same coffer detail for the three arches that are in a curved wall, is there a way to bend an object any ideas... thanks!!
