I want to fill the mesh with fill like in cad in elevation. What should I do?

LeeJaeYoung
Virtuoso

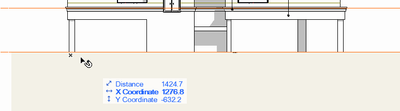

I want to fill the mesh with fill like in cad in elevation.
What should I do?

how i know
1. Turn off the mesh and redraw the Fill.

AC27 on window 11
1 ACCEPTED SOLUTION

Accepted Solutions
Solution

Sorry for some reason I was thinking of a section not an elevation.

In elevation it is the surface that has to have a fill associated to it as Kevin mentioned.






And you must turn on the 'Surface Cover Fill Foreground' in the elevation settings as you have shown.



Barry.



One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

View solution in original post

6 REPLIES 6
Barry Kelly
Moderator

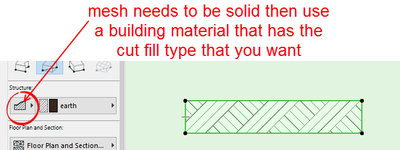

The mesh needs to be solid (which it looks like yours is) and then use a building material that has the cut fill type that you want to see.






Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Can you show me the material?
I can see it from the section, but not from the elevation.

AC27 on window 11
Kevin Lee
Enthusiast

If you want the earth fills from the "Elevation" you need to control it via cover fill (like how you would normally show brick pattern from elevation)

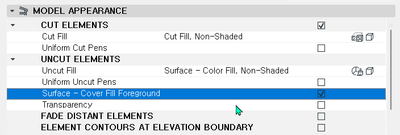

1. Check your section/elevation to show "Surface cover fill Foreground" on

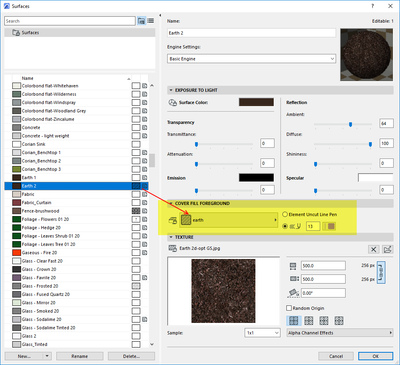

2. Choose the mesh edge with earth cover fill (check your surface)



Screen Shot 2022-10-13 at 2.40.07 pm.png

Kevin Lee

Director of Technology | BIM

TZG Architects


thank you
do you mean this?
Are there any other settings?

AC27 on window 11
Solution

Sorry for some reason I was thinking of a section not an elevation.

In elevation it is the surface that has to have a fill associated to it as Kevin mentioned.






And you must turn on the 'Surface Cover Fill Foreground' in the elevation settings as you have shown.



Barry.



One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

Thank you so much

AC27 on window 11
