Roof Element

Zdenko
Advocate

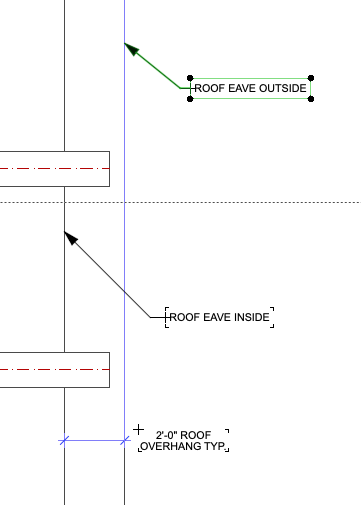

don't understand why roof plan line-work shows up everywhere but the layout book? using roof combination...

Screenshot 2024-06-13 at 3.41.38 PM.pngScreenshot 2024-06-13 at 3.45.04 PM.png



Operating system used: Mac Intel-based Sonoma 14.4.1

Archicad 27 (3001 USA Full Intel Based MAC)
Sonoma 14.4.1
1 ACCEPTED SOLUTION

Accepted Solutions
Solution
Barry Kelly
Moderator

What you call the 'roof eave inside' line (the pivot line), is an on-screen line only - it will not show in layouts or prints (PDFs).

It will only show in plan.

There is an on-screen option to show or hide pivot lines in the plan view as well.



Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

View solution in original post

2 REPLIES 2
Solution
Barry Kelly
Moderator

What you call the 'roof eave inside' line (the pivot line), is an on-screen line only - it will not show in layouts or prints (PDFs).

It will only show in plan.

There is an on-screen option to show or hide pivot lines in the plan view as well.



Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

ahhhh! thank you for the clarification Barry!
