Skylights cutting through roof with surface

Too Long
Enthusiast

Hi all.



Im confused by a setting that is using a surface on the face of the roof composite when cutting through a skylight.

I cant find a setting in the skylight or roof composite to change this.

Do you know where I can find this setting so I can change the brick surface?



Thanks

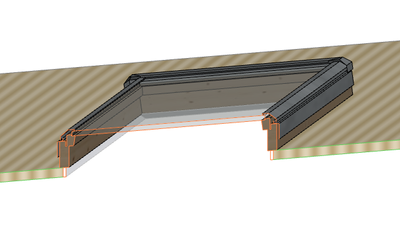

Screenshot 2022-03-06 144632.jpg


AC26 AUS Full
3 REPLIES 3
Laszlo Nagy
Community Admin
Community Admin

Try the "Edge Surface" override in the "Model" panel of the Roof Settings Dialog.

Loving Archicad since 1995 - Find Archicad Tips at x.com/laszlonagy
AMD Ryzen9 5900X CPU, 64 GB RAM 3600 MHz, Nvidia GTX 1060 6GB, 500 GB NVMe SSD
2x28" (2560x1440), Windows 10 PRO ENG, Ac20-Ac27
Too Long
Enthusiast

Hi Laszlo.

Unfortunately that hasnt helped. All the overides are off and over riding dosnt help.


AC26 AUS Full
Barry Kelly
Moderator

What skylight object are you using?

All the ones I have in 25 seem to have trims to the edge of the roof and are more detailed.




OK, you must have the 'Simplified' view set in your Model View Options for 3D of skylights.








In that case it seems it actually uses the bottom surface of the roof, even when the overrides for the roof are turned off.






Turn the roof bottom surface override on, change it to what you want and then turn the override off again so the roof still appears as you want it.



Or set the 3D view of the skylight to 'Full' for a more realistic view.



Barry.

One of the forum moderators.
