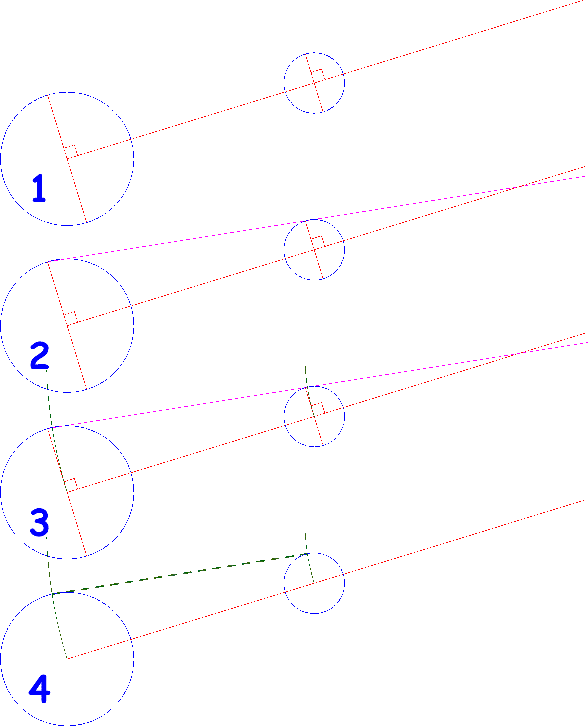

Draw the two circles (or arcs)
1a) From the centres of each circle construct a cocentric axis.1b) Drop perpendicular axes for each circle.
Hint: rotate the main axes by 90 degrees and copy to the centre of each circle
2a) Draw a line connecting these two (perpendicular) axes, and extend (or intersect) with the cocentric axis.
3a) From this intersection (origin) for the circles, draw an arc extending from the centre of each circle crossing its perimeter (shown in green)
4a) Join the intersections of these arcs with the circles
Go get a mocha / beer to reward yourself for the effort. GS will pick up the bill
Actually it sounds (from the above) _really_ complicated but once you get the hang of it - about 10 seconds.
HTH - Stuart
PS. Of course if someone with DevKit wants the maths for this I'll be more than happy to provide it
