Truss/Tag Issues: Showing incorrect length


I need to adjust how my label is dimensioning my top bearing trusses. I need the length to pick up the overall length to include the top bearing extensions. You can see that the dimension of RT04 (bottom bearing) is end to end, but RT05 (top bearing) does not include the top chord extensions.


Does anyone have any tips on how I could re-label these with a different parameter? Or if there is a way to adjust the length that the label is pulling from? Or if I need to edit the Truss and its embedded parameters? I would also take recommendations on other ways to model my top bearing trusses (although truss maker is proving cumbersome).

Barry Kelly

No images attached.



One of the forum moderators.
Versions 6.5 to 27
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11

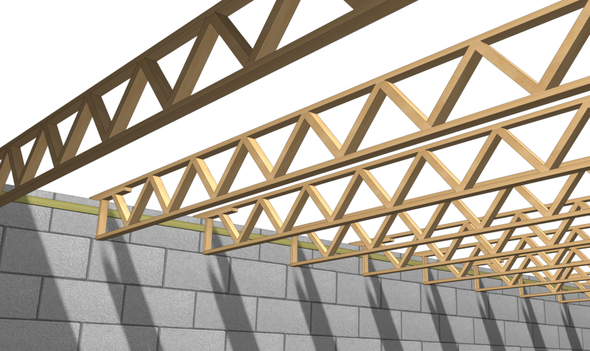

Wood Joists or Bar Joists ?

ArchiCAD 25 7000 USA - Windows 10 Pro 64x - Dell 7720 64 GB 2400MHz ECC - Xeon E3 1535M v6 4.20GHz - (2) 1TB M.2 PCIe Class 50 SSD's - 17.3" UHD IPS (3840x2160) - Nvidia Quadro P5000 16GB GDDR5 - Maxwell Studio/Render Multilight 2 - Adobe Acrobat Pro - ArchiCAD 6 -25
