Wall Type Indicator NCS 20 - Migrate to AC 25 and Up

Has anyone had any success migrating older projects to AC25 and newer that use the label called Wall Type Indicator NCS20? Even if I manually load this label and its associated macros, the file's wall tags show up as missing.

Think Like a Spec Writer
AC4.55 through 27 / USA AC27-4060 USA
Rhino 8 Mac
MacOS 14.2.1
4 REPLIES 4
David Maudlin
Virtuoso

Aaron:



Yes. What do you mean "the file's wall tags show up as missing."?



David

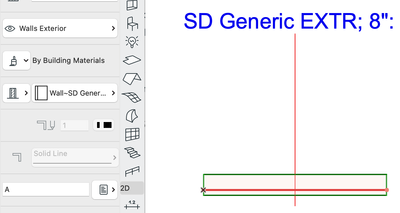

Label Wall Type Indicator NCS20 in AC25.png

David Maudlin / Architect
www.davidmaudlin.com
Digital Architecture
AC27 USA • iMac 27" 4.0GHz Quad-core i7 OSX11 | 24 gb ram • MacBook Pro M3 Pro | 36 gb ram OSX14

I see a big black dot. missing piece placeholder dot.

Think Like a Spec Writer
AC4.55 through 27 / USA AC27-4060 USA
Rhino 8 Mac
MacOS 14.2.1

Aaron:



Does the Library Manager show it as missing?

Does it show up in the Label Settings > Type and Preview?



David

David Maudlin / Architect
www.davidmaudlin.com
Digital Architecture
AC27 USA • iMac 27" 4.0GHz Quad-core i7 OSX11 | 24 gb ram • MacBook Pro M3 Pro | 36 gb ram OSX14

damn. clicked the wrong button.



Yes to both questions David. I see a black dot, but I can select them and then assign the NCS label to them. This invariably results in rework as the labels have leader lines and has to be done floor by floor.
