Atypical window shape

Vojtech Slavik
Booster

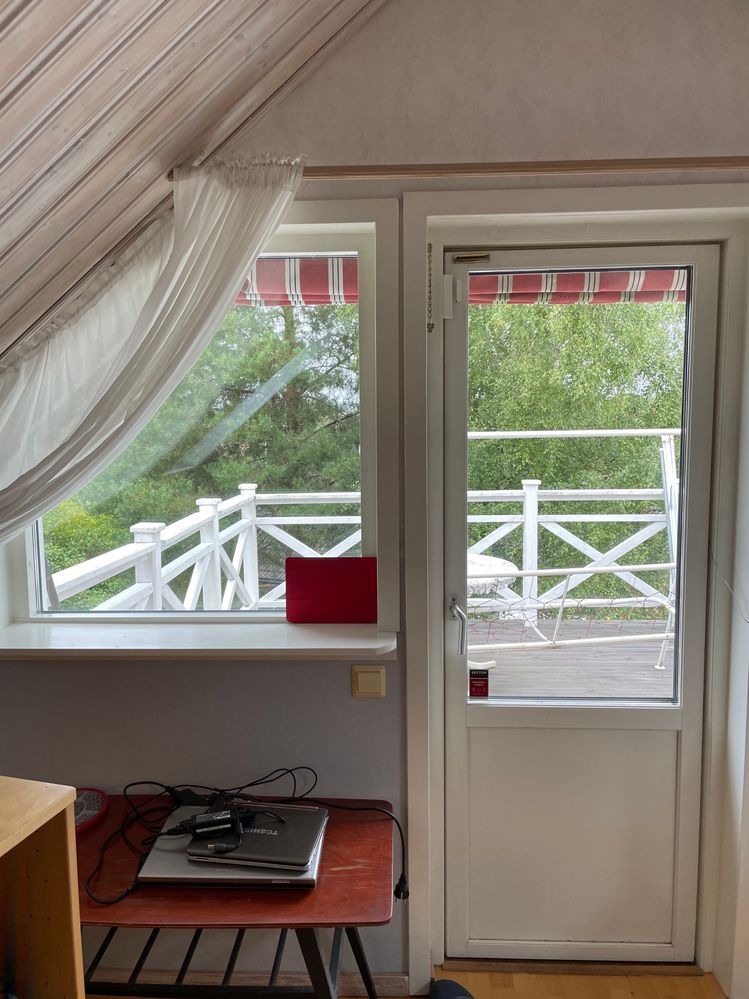

Hi I'm struggling to design this simple but atypical window. do you have some recommendation how to reach this shape ?



Skärmavbild 2021-09-27 kl. 15.54.59.jpgSkärmavbild 2021-09-27 kl. 15.58.34.jpgIMG_6223.jpg



AC 7 - 24 SWE
iMac (Retina 5K, 27-inch, 2017),
4,2 GHz Intel Core i7, 16 GB 2400 MHz DDR4
1 ACCEPTED SOLUTION

Solution
Ricardo Lopez
Contributor

Hi



You can try to create the window as a rectangular one (without the diagonal side) and then Convert selection to Morph(s). Once you have done that, modify as desired, select it all and go to File Menu> Libraries and Objects> Save Selection as...> Window... as described on this article: https://community.graphisoft.com/t5/Design-articles/How-to-create-Custom-Window/ta-p/303432



Regards

ARQ. RICARDO LÓPEZ

Project Solutions and Services

e: rlopez@projectser.com

w: www.projectser.com

t: (507) 399-2994

Ave. La Amistad, El Dorado. Ciudad de Panamá, Panamá

View solution in original post

16 REPLIES 16

Vojtech Slavik
Booster

.

AC 7 - 24 SWE
iMac (Retina 5K, 27-inch, 2017),
4,2 GHz Intel Core i7, 16 GB 2400 MHz DDR4

Solution
Ricardo Lopez
Contributor

Hi



You can try to create the window as a rectangular one (without the diagonal side) and then Convert selection to Morph(s). Once you have done that, modify as desired, select it all and go to File Menu> Libraries and Objects> Save Selection as...> Window... as described on this article: https://community.graphisoft.com/t5/Design-articles/How-to-create-Custom-Window/ta-p/303432



Regards

ARQ. RICARDO LÓPEZ

Project Solutions and Services

e: rlopez@projectser.com

w: www.projectser.com

t: (507) 399-2994

Ave. La Amistad, El Dorado. Ciudad de Panamá, Panamá

View solution in original post

I found this video and it's like you said - easy way how to do it
Video : https://www.youtube.com/watch?v=HtikuYmt2cU





AC 7 - 24 SWE
iMac (Retina 5K, 27-inch, 2017),
4,2 GHz Intel Core i7, 16 GB 2400 MHz DDR4

The trick to get the hole to match the frame is to add a slab that is the overall shape of the window and give it an ID of WALLHOLE.

Then when you save it all as a window object, it will automatically create the correct shaped wall hole from that slab.



Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

Thanks, now I understand

AC 7 - 24 SWE
iMac (Retina 5K, 27-inch, 2017),
4,2 GHz Intel Core i7, 16 GB 2400 MHz DDR4

Karl Ottenstein
Moderator

In addition to Ricardo's suggests - which is great for a one-off - you can use the Libary Part Maker (LPM) add-on to create a custom window with that shape that is parametric.



This is the link to the US version of LPM...site search seems to be based on my data, so you'd have to modify for your country-specific (SWE) version:
https://graphisoft.com/us/downloads/addons/LPM/



And, this topic might be helpful if the created window does not load:

https://community.graphisoft.com/t5/Design-forum/Library-Part-Maker-window-help/m-p/291029



One of the forum moderators   •   AC 25 USA and earlier   •   MacOS 11.6.1, iMac Pro

Thanks but for now I gave up this solution ... problems with libraries for (sweden version) and it's quite hard to get it how to do properly Skärmavbild 2021-09-28 kl. 11.06.46.jpg

AC 7 - 24 SWE
iMac (Retina 5K, 27-inch, 2017),
4,2 GHz Intel Core i7, 16 GB 2400 MHz DDR4

Qualifa
Booster

Hello @Vojtech Slavik,



I would like to suggest this Add-On for the development of atypical windows:

https://graphisoft.com/downloads/addons/archiglazing

Proud member of UNION.ARCHI Network

Barry Kelly
Moderator

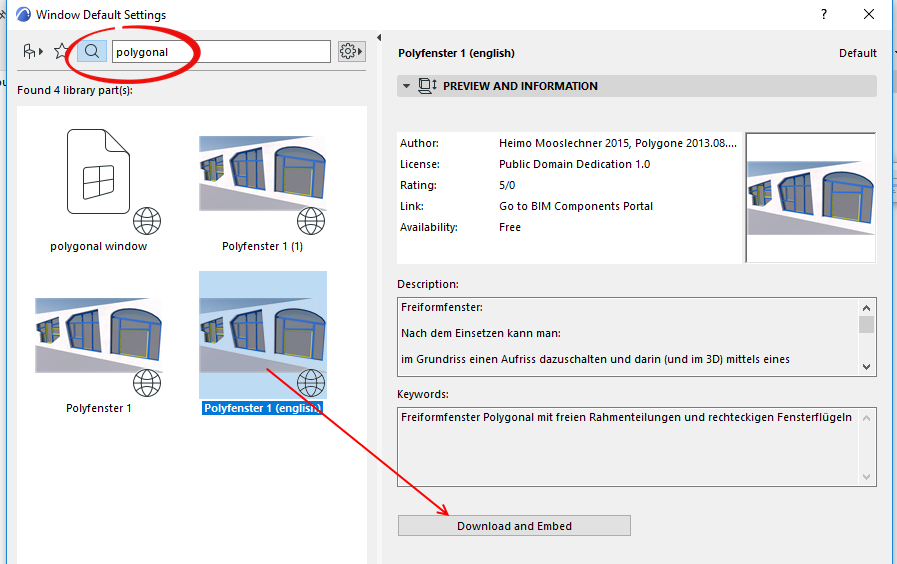

Also you can try searching in BIMComponents for "polygonal window" in the window settings search option.






I have not used this object but it may do what you want.



Barry.




One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

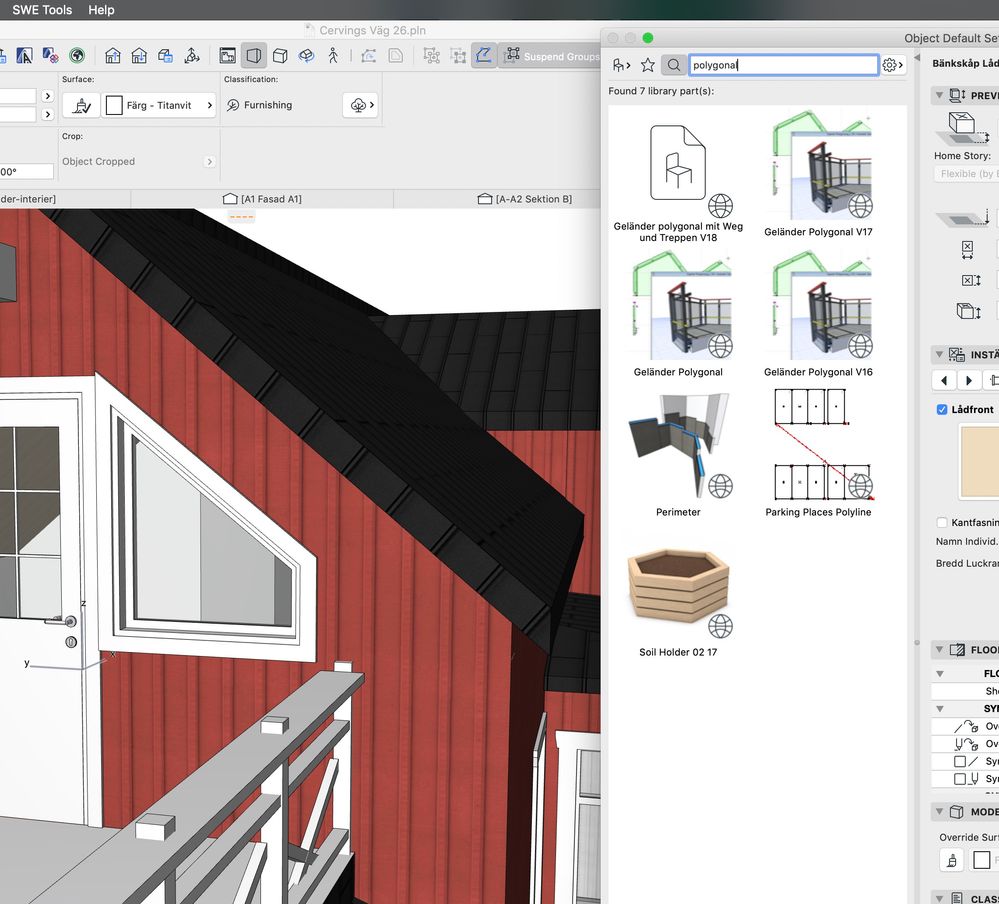

I can't see results like yours ? Is't version of Archicad ?Skärmavbild 2021-09-28 kl. 08.49.50.jpg

AC 7 - 24 SWE
iMac (Retina 5K, 27-inch, 2017),
4,2 GHz Intel Core i7, 16 GB 2400 MHz DDR4

I think you might be searching in the object tool.

You need to be in the window tool.



Barry.


One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

Jop You are right I din't get it that I have to be on windows settings.

But unfortunately there is non description how to reach this tape of window 😕

Skärmavbild 2021-09-28 kl. 11.13.01.jpg

AC 7 - 24 SWE
iMac (Retina 5K, 27-inch, 2017),
4,2 GHz Intel Core i7, 16 GB 2400 MHz DDR4

The first one with no image seems to be in English (2 & 3 are German I believe).

The 4th one, I got an error message when trying to download.



Just select and then press Download button.

It will be added to your Embedded Library.



As I said, I have not used this object but is is all stretchy in elevation and even a preview in plan by the looks.

There seem to be some description in the plan preview for what to do.



There will be a video by the creator @Hmooslechner somewhere in a post here.



I think this is the post with a link to a YouTube video.



https://community.graphisoft.com/t5/Design-forum/Polygonal-freeform-Window-with-inner-freeform-grid/...





Barry.




One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

Thanks a lot Barry. Just curios... are you answering this at 2:36 AM in your time zone ? 😅

AC 7 - 24 SWE
iMac (Retina 5K, 27-inch, 2017),
4,2 GHz Intel Core i7, 16 GB 2400 MHz DDR4

No it was 5.36pm here.

In your profile settings there is an option to set the time zone.



My Settings > Preferences > General.



Barry.




One of the forum moderators.
Versions 6.5 to 25
Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
Dell Precision 3510 - i7 6820HQ @ 2.70GHz, 16GB RAM, AMD FirePro W5130M, Windows 10

Paul King
Advocate

The very simplest answer I know is to use the CI Tools library, which allows exactly that window shape out of the box.

PAUL KING
https://www.prime.net.nz
ArchiCAD 8-25
Octane Render Plugin for ArchiCAD
Twinmotion 2021
Windoze 10
Intel Core i9 10900K
Nvidia Gforce RTX 3080
32 Gb DDR3
2x4K monitor extended desktop
