Any help -- why do these objects appear differently?

proto
Advocate

I've put a bunch of trim (columns & beams) as cladding in this project.

The base trim & door casing appear brown in elevation and section view, but the vertical battens appear white. I cannot figure why. I'd prefer they both be white as it is a white shadowed elevation/section

I didn't override surfaces.

They are different by thickness (1.5" & 3/4").

Both are on new renovation filter. I think I even started from the casing (column) and resized it to be a batten before spreading around the building. Somehow they are displaying differently.

The two selected in the settings shown below are both columns.

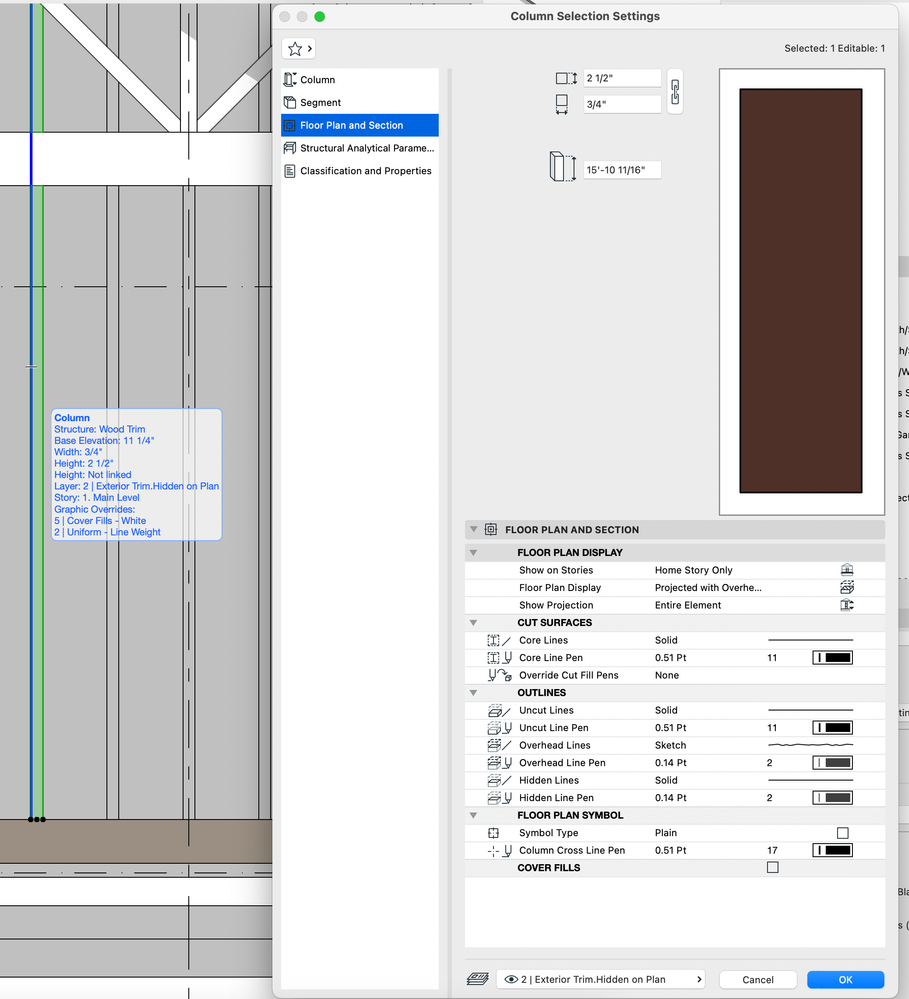

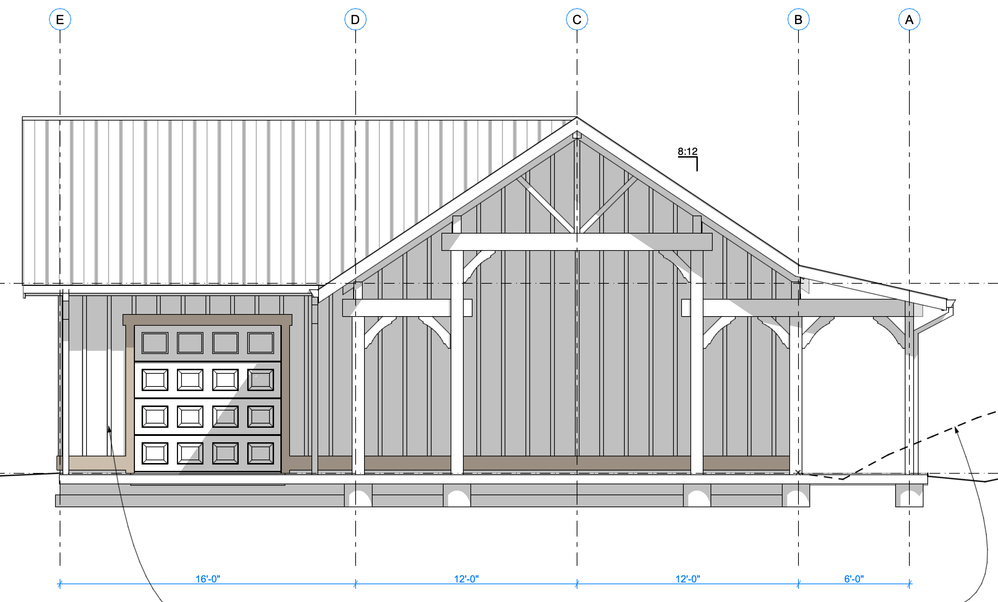

elevation of building w/ brown & white trim elementselevation of building w/ brown & white trim elementsNarrow vert trim settings materialNarrow vert trim settings materialNarrow vert trim settings displayNarrow vert trim settings displayDoor casing setting: displayDoor casing setting: displayDoor casing setting: materialDoor casing setting: material



Any help on where to look would be appreciated...!

Thanks up front

mac ACv27/4001, US full, Sonoma 14.1.2, 2020 iMac/2023 MacBook Pro
1 ACCEPTED SOLUTION

Accepted Solutions
Solution
proto
Advocate

@Barry Kelly thanks for that clarity...i will look into that

I do appreciate the assistance and patience with what must be very basic questions



[Edit to add]

ok.... [& WOOHOO!]

the two entities are different in that the brown one has very few listings under the Classifications & Properties.

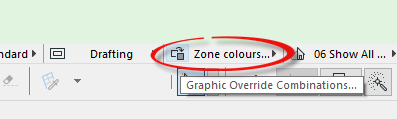

Specifically, it is missing a Property called Cover Fills whose logical modifier needs to be True for the Graphic Modifier to work.

Further, it was undefined under Archicad Classification. By checkmarking the Archicad Classification & ID'ing the element as "Cladding", it brings up the appropriate properties where I can mark it as True for Cover Fills. Boom! It now is working under the Graphic Override.



Thanks @Barry Kelly & @Lingwisyer for chiming in to assist!

mac ACv27/4001, US full, Sonoma 14.1.2, 2020 iMac/2023 MacBook Pro
