The line tool. How can i position the line at a desired angle. Like 60°,30° and all that

5 REPLIES 5

You can draw the line at the required length on the x axis and then cmd+E or ctrl+E to rotate and then input the angle numerically and the line will rotate to that angle.

Lee Hankins
ArchiCAD 4.5 - Archicad 27UKI Apple Silicon 27.2.2 | Archicad 28 TP Apple Silicon
macOS Sequoia (15)
Eduardo Rolon
Moderator

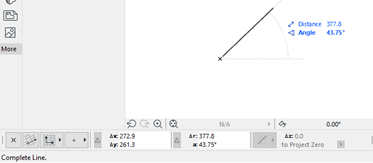

Start the line, hit TAB and then input distance and angle

Eduardo Rolón AIA NCARB
AC27 US/INT -> AC08

Macbook Pro M1 Max 64GB ram, OS X 10.XX latest
another Moderator

AllanP
Advocate

when you are drawing a line,

if you type the "a" key, it jumps to the angle value.

if you type the "r" key or the "d" key , it jumps to the length value.

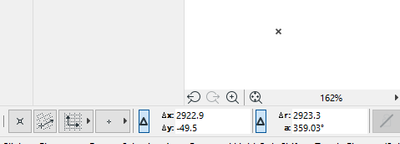

if the "delta" symbol is on,

if you type the "x" key, then you can input an x coordinate from the origin of the line.

if you type the "y" key, then you can input a y coordinate from the origin of the line.

if the "delta" symbol is not on,

if you type the "x" key, then you can input an x coordinate from the project origin.

if you type the "y" key, then you can input a y coordinate from the project origin.



you can enter theses coordinates by using the "Tab" key to cycle through the input values, or hold down the "Shift" key while tapping the "Tab" key to cycle through the input values in the opposite order.



Remember: the angle is measured from the horizontal going to the right, but you can make it go clockwise or anticlockwise depending on where you mouse is when you start inputting the values.







if you are using the "x" or "y" coordinates, remember that they are measured from the project origin (not thew last node of the line) if the "delta" symbol is not on.




Remember: the coordinate values that are displayed in the coordinate box, show the values from horizontal going to the right, anticlockwise .



i hope this helps.









I have been using ArchiCAD continually since ArchiCAD 4.5, 4.5.5, 5, 5.1, 6, 6.5, 7, 8, 8.1, 9, 10, 11, 12, 13, 15, 18, 21, 22, 25, now testing 27
Member of Architalk since 2003, but missed the migration to Graphisoft.
(where have all my original posts gone?)
Barry Kelly
Moderator

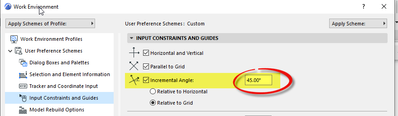

You can also set the incremental angle in the Work Environment to an angle you use all of the time.

It will increment to multiples of the angle you set.

So 15 will be 15,30,45,60 75, etc.

30 will be 30, 60, 90, etc.

I just like a simple 45, so 45, 90, 135, etc.








Then use the snap guides and you don't need to type any angles at all.



Barry.

One of the forum moderators.
Versions 6.5 to 27
i7-10700 @ 2.9Ghz, 32GB ram, GeForce RTX 2060 (6GB), Windows 10
Lenovo Thinkpad - i7-1270P 2.20 GHz, 32GB RAM, Nvidia T550, Windows 11
Jorge_Arreguin
Booster


first change in preference the way angles will work




then you can click on point and TAB for the last point and you can modify each data
