MVO Show window openings only eliminates wall lines at jamb

Robert Nichols

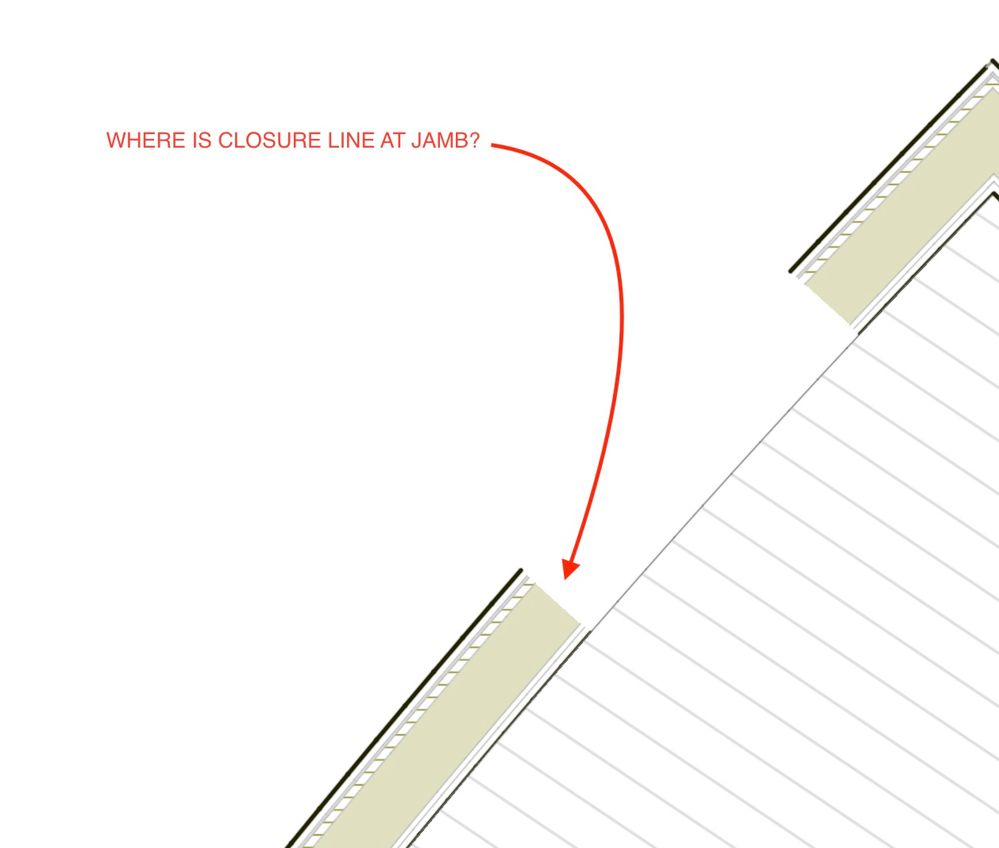

In some cases, with MVO set to show window openings only (like I usually do for ceiling plan), the resultant view is missing lines where the wall is cut for the window opening, i.e. at the jamb (see attached image).


I had thought the problem was with the setup of the composite wall, but I get the same result when I revert to a simple wall. Must be a window setting, and I feel like I've fixed it before, but I can never remember where (happens a lot with ArchiCAD).


Any ideas?

Mac Studio, 32gb ram, ArchiCAD v26 (Apple Silicon) MacOS 13


do you have the "with contour" box checked as well on the MVO in use?

AC24 / AC26

Uhhh - I don't have "with contour" checked, but when I set that correctly, it adds lines parallel to the wall (running jamb-to-jamb), which IS, what I want to see, but the short perpendicular lines indicating the jamb are still omitted.

Mac Studio, 32gb ram, ArchiCAD v26 (Apple Silicon) MacOS 13

do you have the line pen box checked within the composites?



that is a common issue in our office, when people dig up older projects, and copy things to a new file.

AC24 / AC26
