Sheet index - how to create sub headers dividing different sheets?

ELEVATE
Booster

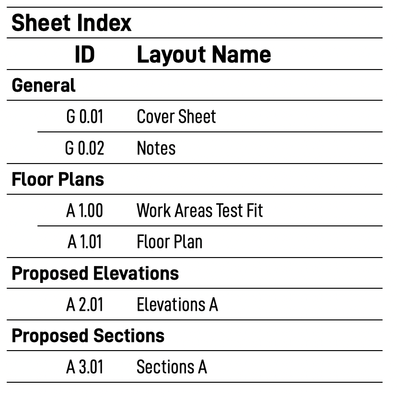

Sheet index - how to create sub headers dividing different sheets?  Please see the attached sheet index and example of what I want it to look like.  Thank you






Operating system used: Windows 23H2

3 REPLIES 3
cichy
Contributor

Hi !



You should place those sheets in folders in the layouts view.

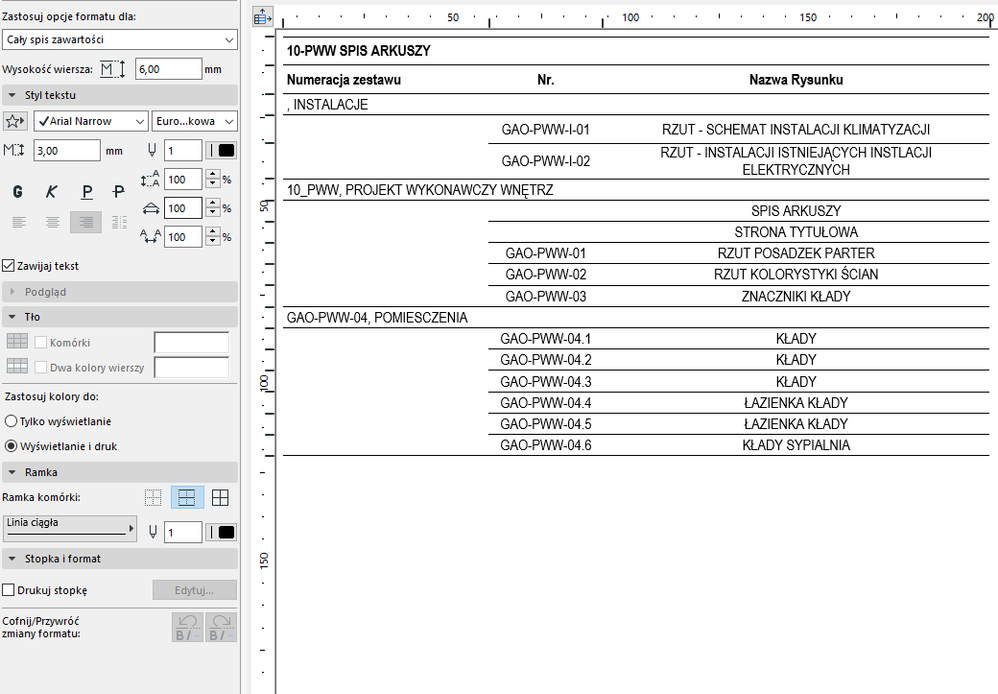

I know that the screenshots are in polish, but you will get the idea.



Michał













Eduardo Rolon
Moderator

To achieve this:


You'll need to Create Subsets in your Layout Book:

•

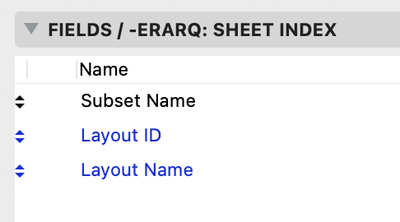

Sort the Index by:


and turn on:


---

Take into account that in some cases it will be easier to create multiple Indexes instead of trying to get one that is perfect.





Eduardo Rolón AIA NCARB
AC27 US/INT -> AC08

Macbook Pro M1 Max 64GB ram, OS X 10.XX latest
another Moderator

vlahtinen
Enthusiast

One option is to create a new property to Layout Info Scheme in Book Settings, eg. "Drawing Type":






Then you can set the drawing type in layouts' settings:

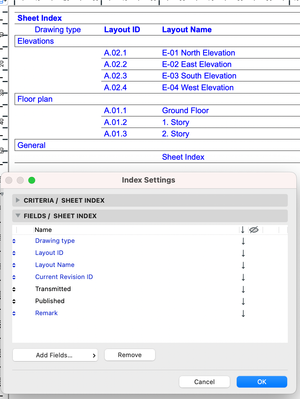

Then it's possible to display the custom layout property in the sheet index and group the items by this value:




Setup info provided by author
